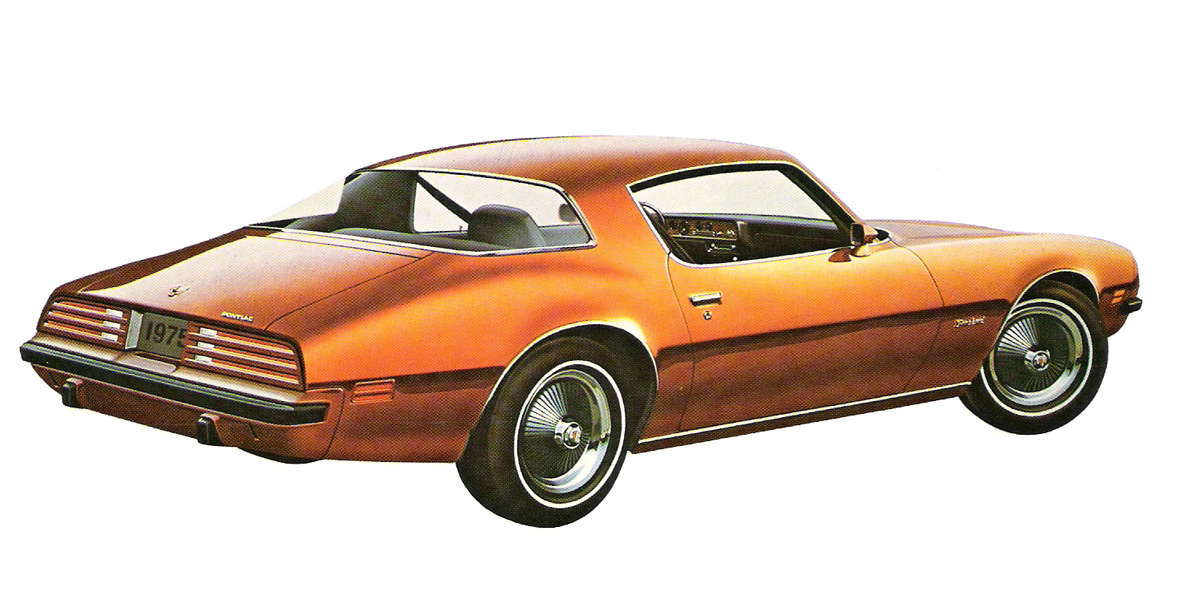

Base Firebird S87

Interior Features
Standard Interior
All Morrokide Vinyl Bucket Seats
Standard door panels with map pockets
Other Interior Features
Deluxe Two Spoke Steering Wheel with Soft Covered Center in Interior Matching Colors.
Nylon Blend Cut-pile Carpeting
Solid 1 piece Headliner
Seat Belts with Pushbutton buckles for all passenger positions. Two front combination seat and shoulder belts for driver and right front passenger (with reminder light and buzzer, inertia reel and starter interlock).
Black Seat Belts (color keyed available AK1)
Floor Mounted Dimmer Switch
Crossfile Mahogany Applique on Instrument Panel with black instrument bezels
100 MPH Speedometer Graduated in Kilometers per Hour as well as Mile per Hour
Console (D55) Available
High-Low Level Body Ventilation
Exterior Features
Endura Front Bumper with Integral Bumper Guards
New Wraparound Rear Window
Grille Styling with Argent Accent and Integrated Turn Signals
Red Bird Emblem Between Grilles
Endura Rear Bumper with Integral Bumper Guards
Firebird Nameplate on front fender
Chrome Rear View Mirror
Firebird Emblem on Deck Lid (Except with Spoiler)
Rear Air Spoiler (D80) Optional. Includes Spoiler Bird Decal
Exposed Windshield Wipers
Recessed Wipers Available (C24)
Narrow Rocker Panel Moldings
Bright Windshield and Rear Window Moldings
Bright Headlamp Bezels
Windshield Radio Antenna
Other
Dual Horns
Standard Engine
L22 250 cid (4.1 Litre) Overhead Valve 6 Cyl, 1bbl
Optional Engine
L30 350 cid (5.7 Litre) V-8 2bbl
L76 350 cid (5.7 Litre) V-8 4bbl
Standard Transmission
M15 3 Speed Manual, Floor Shift (Automatic in California)
Optional Transmission
M20 4 speed Wide Ratio Manual Floor Shift with L76 350 4bbl V8
M38 3 Speed Turbo Hydramatic
Steering
Variable Ratio - Power Steering
Suspension
Radial Tuned Suspension with Independent Front Suspension with upper and lower control arms, coil springs and tubular shocks. Rear Hotchkiss solid Axle with multi-leaf springs
1.00 inch Front Stabilizer bar
Brakes
Manual Front Disc Brakes-Rear Drum Brakes
Power Front Disc, Rear Drum Available (JL2)
Differential
Solid Rear Axle
G80 Safe T Track Differential Available
Axle Ratios
2.73:1 with L22 6 Cylinder
2.56:1 with L30 350 V8
3.08: 1 with L76 350 V8 and 4 speed
2.56: 1 with L76 350 V8 and M38 Turbohydramatic
Wheels/Hubcaps
Moon Hubcaps
15" X 7"
(14" x 7" available as a credit delete with F78-14 tire (Option QFL for blackwalls or QFM for white walls))
Available Wheels/Hubcaps
Deluxe Wheel Covers (P01)
Custom Finned Wheel Covers (P02)
Rally II Wheels with Trim Rings (N98)
Honeycomb Wheels (P05)
Wheel Trim Rings (P06) with Moon Hubcap only
Standard Tires
FR78-15 Blackwall Steel Belted Radial (QBU)
Available Tires
FR78x15 Whitewall Steel Belted Radial Tires (QBW)
FR78x15 Raised White Letter Steel Belted Radial Tires (QBP)
F78 X 14 Blackwall Fiberglass Tires (QFL) includes 14" wheel - Credit Option
F78 X 14 Whitewall Fiberglass Tires (QFM) includes 14" wheel - Credit Option

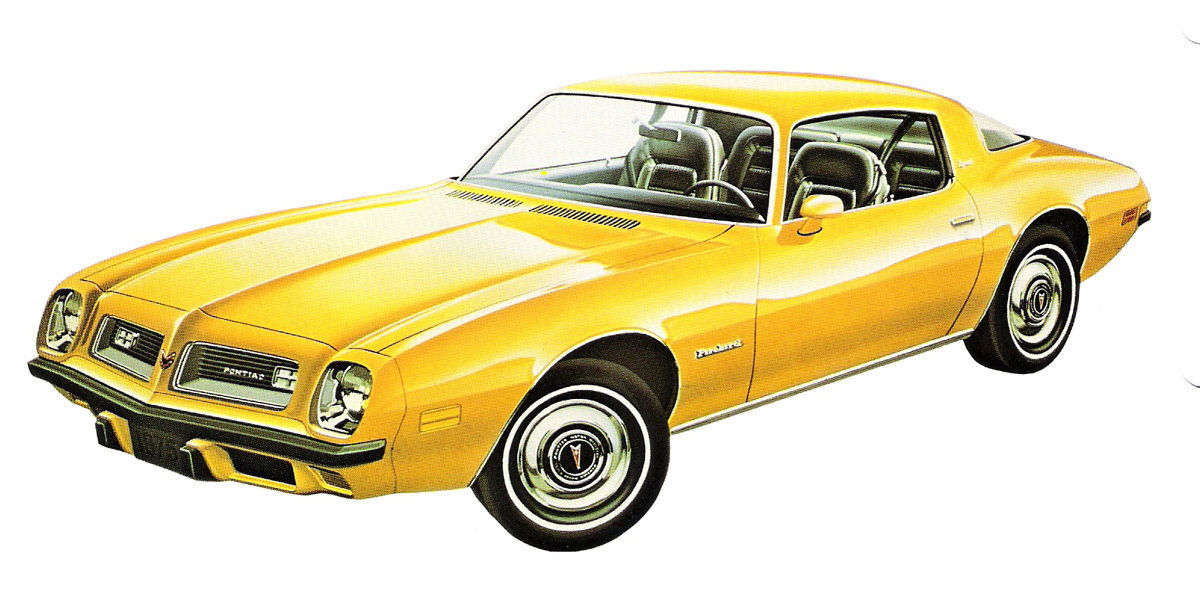

Firebird Esprit T87

Interior Features
Custom Interior (Y90)
Custom Morrokide and Perforated Morrokide Vinyl Bucket Seats
Upgraded door panels with pull strap and map pockets below.
Instrument Panel Assist Strap
Rear Quarter Ashtrays
Bright Pedal Trim (JL1)
Luggage Compartment Mat
Includes Exterior Door handle insert in body color
Other Interior Features
Custom Cushion Three Spoke Steering Wheel (N30) in Interior Matching Color
Nylon Blend Cut-pile Carpeting
Solid 1 piece Headliner
Extra Body and Underhood Insulation
Seat Belts with Pushbutton buckles for all passenger positions. Two front combination seat and shoulder belts for driver and right front passenger (with reminder light and buzzer, inertia reel and starter interlock).
Black Seat Belts (color keyed available AK1)
Floor Mounted Dimmer Switch
Crossfile Mahogany Applique on Instrument Panel with black instrument bezels
100 MPH Speedometer Graduated in Kilometers per Hour as well as Mile per Hour
Console (D55) Available
High-Low Level Body Ventilation
Exterior Features
Endura Front Bumper with Integral Bumper Guards
New Wraparound Rear Window
Grille Styling with Argent Accent and Integrated Turn Signals
Red Bird Emblem Between Grilles
Esprit Nameplate on Roof Sail Panel
Endura Rear Bumper with Integral Bumper Guards
Firebird Nameplate on front fender
Right- and Left-hand Body-colored Outside Mirrors - Left-hand Remote Controlled
Body Color Inserts in Outside Door Handles
Firebird Emblem on Deck Lid
Recessed Windshield Wipers (C24)
Wide Rocker Panel Moldings
Chrome Roof Drip with Scalp Moldings (B80)
Hood Rear Edge and Belt Reveal Moldings
Front and Rear Wheel Opening Moldings
Bright Windshield and Rear Window Moldings
Bright Headlamp Bezels
Windshield Radio Antenna
Other
Dual Horns
Standard Engine
L22 250 cid (4.1 Litre) Overhead Valve 6 Cyl, 1bbl
Optional Engine
L30 350 cid (5.7 Litre) V-8 4bbl
L76 350 cid (5.7 Litre) V-8 4bbl
Standard Transmission
M38 3 Speed Turbo Hydramatic
Optional Transmission
M20 4 speed Wide Ratio Manual Floor Shift with L76 350 4bbl V8
M38 3 Speed Turbo Hydramatic with L76 350 4 bbl V8
Steering
Variable Ratio - Power Steering
Suspension
Radial Tuned Suspension with Independent Front Suspension with upper and lower control arms, coil springs and tubular shocks. Rear Hotchkiss solid Axle with multi-leaf springs
1.00 inch Front Stabilizer bar
Brakes
Manual Front Disc Brakes-Rear Drum Brakes
Power Front Disc, Rear Drum Available (JL2)
Differential
Solid Rear Axle
G80 Safe T Track Differential Available
Axle Ratios
2.73:1 with L22 6 Cylinder
2.56:1 with L30 350 V8
3.08: 1 with L76 350 V8 and 4 speed
2.56: 1 with L76 350 V8 and M38 Turbohydramatic
Wheels/Hubcaps
Deluxe Wheel Covers (P01)
15" X 7"
(14" x 7" available as a credit delete with F78-14 tire (Option QFL for blackwalls or QFM for white walls))
Available Wheels/Hubcaps
Custom Finned Wheel Covers (P02)
Rally II Wheels with Trim Rings (N98)
Honeycomb Wheels (P05)
Standard Tires
FR78-15 Blackwall Steel Belted Radial (QBU)
Available Tires
FR78x15 Whitewall Steel Belted Radial Tires (QBW)
FR78x15 Raised White Letter Steel Belted Radial Tires (QBP)
F78 X 14 Blackwall Fiberglass Tires (QFL) includes 14" wheel - Credit Option
F78 X 14 Whitewall Fiberglass Tires (QFM) includes 14" wheel - Credit Option

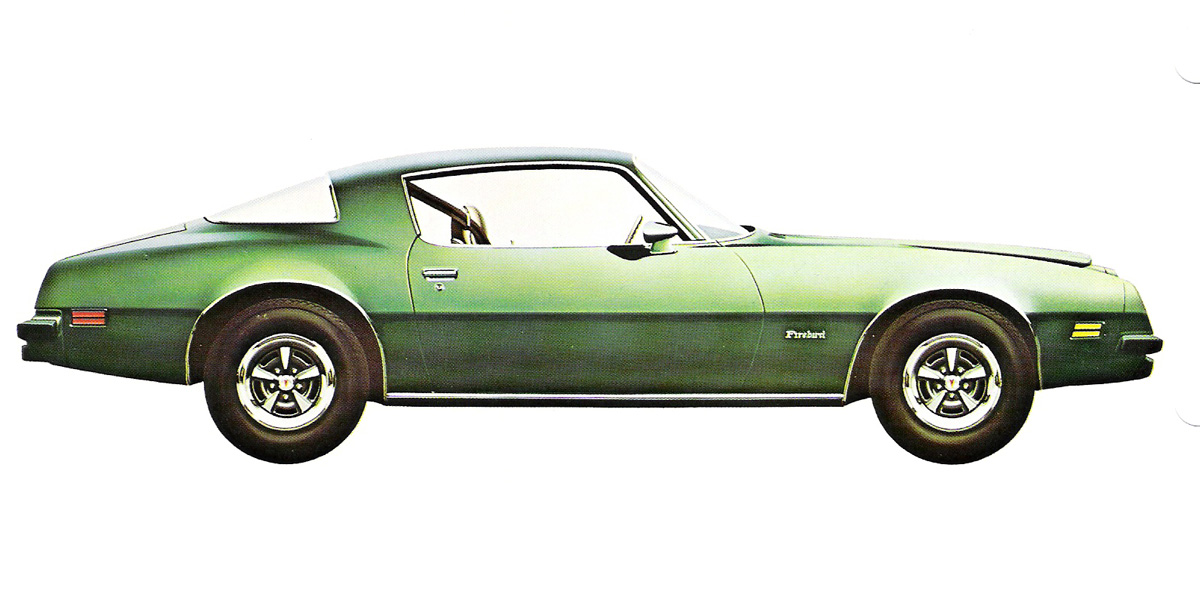

Formula U87

Interior Features
Standard Interior
All Morrokide Vinyl Bucket Seats
Standard door panels with map pockets
Custom Interior (Y90) available
Other Interior Features
Custom Cushion Three Spoke Steering Wheel (N30) in Interior Matching Color
Nylon Blend Cut-pile Carpeting
Solid 1 piece Headliner
Seat Belts with Pushbutton buckles for all passenger positions. Two front combination seat and shoulder belts for driver and right front passenger (with reminder light and buzzer, inertia reel and starter interlock).
Black Seat Belts (color keyed available AK1)
Floor Mounted Dimmer Switch
Crossfile Mahogany Applique on Instrument Panel with black instrument bezels
100 MPH Speedometer Graduated in Kilometers per Hour as well as Mile per Hour
Console (D55) Available
High-Low Level Body Ventilation
Exterior Features
Endura Front Bumper with Integral Bumper Guards
New Wraparound Rear Window
Grille Styling with Black Accent and Integrated Turn Signals
Red Bird Emblem Between Grilles
Endura Rear Bumper with Integral Bumper Guards
Fiberglass Hood with Dual Snorkel Intakes
Firebird Nameplate on front fender
FORMULA 350 or FORMULA 400 Emblems on Fenders matching the engine size ordered,
Right- and Left-hand Body-colored Outside Mirrors - Left-hand Remote Controlled
Firebird Emblem on Deck Lid (Except with Spoiler)
Rear Air Spoiler (D80) Optional. Includes Spoiler Bird Decal
Exposed Windshield Wipers
Recessed Wipers Available (C24)
Narrow Rocker Panel Moldings
Bright Windshield and Rear Window Moldings
Bright Headlamp Bezels
Windshield Radio Antenna
Other
Dual Horns
Standard Engine
L76 350 cid (5.7 Litre) V-8 4bbl
Optional Engine
L78 400 cid (6.6 Litre) V-8 4bbl
Standard Transmission
M20 4 speed Wide Ratio Manual Floor Shift
Optional Transmission
M21 4 Speed Close Ratio Manual Floor Shift (no cost)
M38 3 Speed Turbo Hydramatic
Steering
Variable Ratio - Power Steering
Suspension
Radial Tuned Suspension with Independent Front Suspension with upper and lower control arms, coil springs and tubular shocks. Rear Hotchkiss solid Axle with multi-leaf springs
Heavy Duty Front Coil Springs
Heavy Duty Firm Control Tubular Shocks
1.125 inch Front Stabilizer bar
0.562 inch Rear Stabilizer Bar
Brakes
Power Front Disc, Rear Drum (Jl2)
SCF pg 52. Conflicts with others
Differential
Solid Rear Axle
G80 Safe T Track Differential Available
Axle Ratios
3.08:1 with 4 speed
2.56: 1 with M38 Turbohydramatic
Wheels/Hubcaps
Moon Hubcaps
15" X 7"
Available Wheels/Hubcaps
Deluxe Wheel Covers (P01)
Custom Finned Wheel Covers (P02)
Rally II Wheels with Trim Rings (N98)
Honeycomb Wheels (P05)
Wheel Trim Rings (P06) with Moon Hubcap only
Standard Tires
FR78-15 Blackwall Steel Belted Radial (QBU)
Available Tires
FR78x15 Whitewall Steel Belted Radial Tires (QBW)
FR78x15 Raised White Letter Steel Belted Radial Tires (QBP)
GR70-15 Blackwall Steel Belted Radial with white lettering (QBX)
GR70-15 Raised White Letter Steel Belted Radial (QCY)

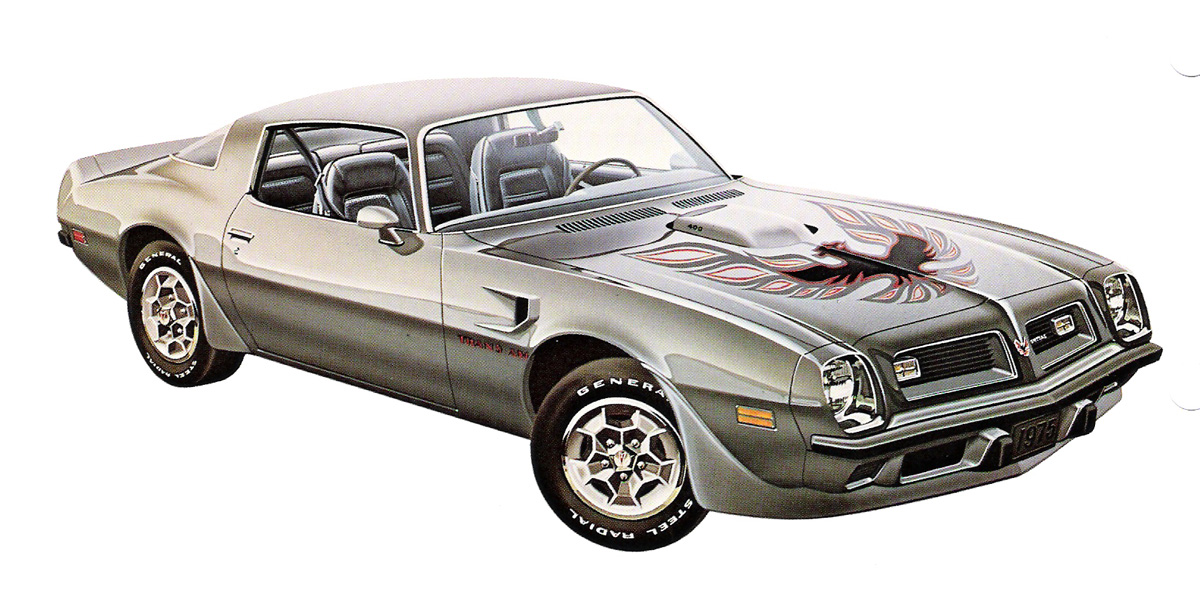

Trans Am V87

Interior Features
Standard Interior
All Morrokide Vinyl Bucket Seats
Standard door panels with map pockets
Custom Interior (Y90) available
Other Interior Features
Formula Steering Wheel Black (NK3)
Nylon Blend Cut-pile Carpeting
Solid 1 piece Headliner
Seat Belts with Pushbutton buckles for all passenger positions. Two front combination seat and shoulder belts for driver and right front passenger (with reminder light and buzzer, inertia reel and starter interlock).
Black Seat Belts (color keyed available AK1)
Floor Mounted Dimmer Switch
Engine-turned Instrument Panel Plate with Black Trim
Rally Guages, Clock & Instrument Panel Tachometer (WW8) and 100 MPH Speedometer Graduated in Miles and Kilometers Per Hour
Console (D55) Available
High-Low Level Body Ventilation
Exterior Features
Endura Front Bumper with Integral Bumper Guards
New Wraparound Rear Window
Grille Styling with Black Accent and Integrated Turn Signals
Red Bird Emblem Between Grilles
Front Center Air Dam and Rear Wheel Opening Air Spoiler
Endura Rear Bumper with Integral Bumper Guards
Shaker Hood and Air Cleaner
Trans Am Decal on Front Fender
Functional Front Fender Air Extractors
Right- and Left-hand Body-colored Outside Mirrors - Left-hand Remote Controlled
Rear Spoiler with TRANS AM decal
Recessed Windshield Wipers (C24)
No Rocker Panel Moldings
Bright Windshield and Rear Window Moldings
Bright Headlamp Bezels
Chrome Exhaust Tips
Windshield Radio Antenna
Other
Dual Horns
Standard Engine
L78 400 cid (T/A 6.6 Litre) V-8 4bbl
Optional Engine
L75 455 HO (7.5 Litre) V-8 4bbl (introduced mid-year)
Standard Transmission
M20 4 speed Wide Ratio Manual Floor Shift
Optional Transmission
M21 4 Speed Close Ratio Manual Floor Shift (no cost)
M38 3 Speed Turbo Hydramatic (not available with L75 455 HO V8)
Steering
Variable Ratio - Power Steering
Suspension
Radial Tuned Suspension with Independent Front Suspension with upper and lower control arms, coil springs and tubular shocks. Rear Hotchkiss solid Axle with multi-leaf springs
Heavy Duty Front Coil Springs
Heavy Duty Firm Control Tubular Shocks
1.250 inch Front Stabilizer Bar
0.812 inch Rear Stabilizer Bar
Brakes
Power Front Disc, Rear Drum (Jl2)
Differential
Safe-T Track Limited Slip
Axle Ratios
0.13056712962963
Wheels/Hubcaps
Rally II Wheels with Trim Rings (N98)
15" X 7"
Available Wheels/Hubcaps
Honeycomb Wheels (P05)
Standard Tires
GR70-15 Blackwall Steel Belted Radial with white lettering (QBX)
Available Tires
GR70-15 Raised White Letter Steel Belted Radial (QCY)
