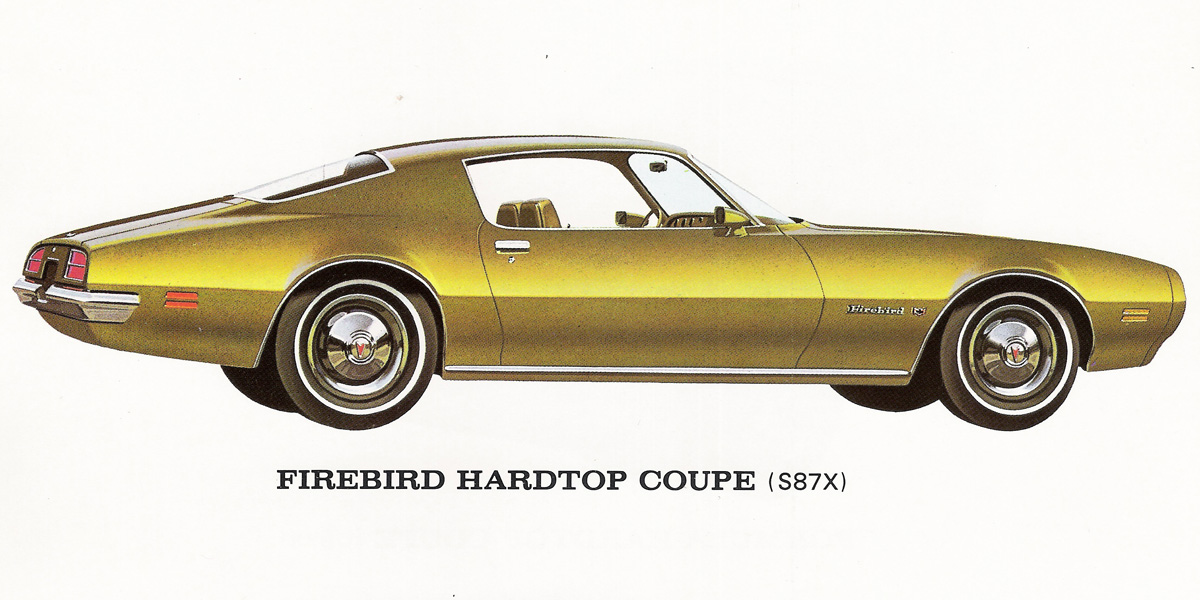

Base Firebird S87

Interior Features
Standard Interior
Vinyl Strato Bucket Seats with integrated headrest
Standard door panels with map pockets
Other Interior Features
Two spoke, shallow dish steering wheel. Black
Nylon Blend Loop-pile Carpeting
Bow type headliner. Perforated
Seat Belts with Pushbutton Buckles for all Passenger Positions. Separate Shoulder Belts with Push button buckles for driver and right front passenger
Black Seat Belts (color keyed available AK1)
Floor Mounted Dimmer Switch
Flame Chestnut Applique on Instrument Panel
160 MPH Speedometer Graduated in Miles Per Hour
Console (D55) Available
Upper Level Ventilation
Exterior Features
Endura Front Bumper
Grille Styling with Argent Accent with PONTIAC Emblem.
350 emblem in Front Grille. If the L65 400 is ordered then
Chrome Rear Bumper
Firebird Nameplate on front fender
Chrome Left Hand Mirror
Dual Body-Color Sport-Type Outside Rear View Mirrors (D35) Available
Firebird Emblem on Deck Lid
Exposed Windshield Wipers
C24 Concealed Wipers Available
Narrow Rocker Panel Moldings
Bright Windshield and Rear Window Moldings
Bright Headlamp Bezels
Windshield Radio Antenna
Other
Single Horn
Dual Horns Available (U05)
Standard Engine
L22 250 cid (4.1 Litre) Overhead Valve 6 Cyl, 1bbl (L22)
Optional Engine
L30 350 cid (5.7 Litre) V-8 2bbl (L30)
Standard Transmission
M02 3 Speed Manual, Column Shift (M02)
Optional Transmission
M12 3 Speed Manual, Floor Shift when L30 350 V8 ordered
M20 4 Speed Manual Transmission with L30 350 V8
M35 2-Speed Automatic Transmission
M38 3-Speed Turbo Hydra-matic Transmission
Steering
Manual Steering
Variable Ratio Power Steering Available (N41)
Suspension
Independent Front Suspension with upper and lower control arms, coil springs and tubular shocks. Rear Hotchkiss solid Axle with multi-leaf springs
0.940 inch Front Stabilizer bar
Brakes
Manual Front Disc Brakes-Rear Drum Brakes
Power Front Disc, Rear Drum Available (J50)
Differential
Solid Rear Axle
G80 Safe T Track Differential Available
Axle Ratios
3.08:1
3.42:1 with L30 350 V8 and Manual Transmission
2.73:1 with L30 350 V8 and Automatic Transmission
Optional Axle Ratio
G92 Performance Axle
3.08:1 with L30 350 V8 and Automatic Transmission
Wheels/Hubcaps
Standard Hubcaps
14" X 6" with 6 cyl
14" x 7" with V8
Available Wheels/Hubcaps
Custom Finned Wheel Covers (P02)
Deluxe Wheel Covers (P01)
Rally II Wheels with Trim Rings (N98)
Honeycomb Wheels (P05)
Wheel Trim Rings (P06) with Standard Hubcap only
Standard Tires
E78 X 14 Blackwall Tires
Available Tires
F70 X 14 Blackwall Fiberglass Tires (PY6)
F78 X 14 Whitewall Fiberglass Tires (PX6)
E78 X 14 Whitewall Fiberglass Tires (PL3)
F70 X 14 Raised White Letter Fiberglass Tires (PL4)

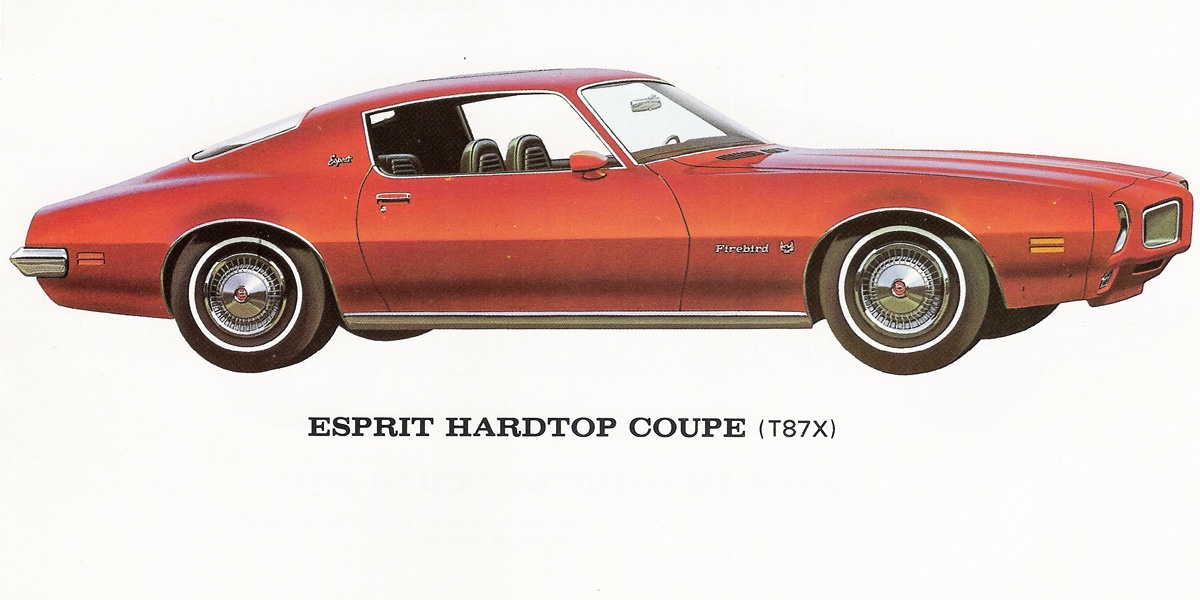

Firebird Esprit T87

Interior Features
Custom Interior (Y90)
Custom Vinyl Strato Bucket Seats with integrated headrests
Upgraded door panels with pull strap and map pockets below.
Instrument Panel Assist Strap
Rear Quarter Ashtrays
Formed Rubber Trunk Mat (B42)
Includes Exterior Door handle insert in body color
Other Interior Features
Custom Cushion Three Spoke Steering Wheel (N30) in Interior Matching Color
Nylon Blend Loop-pile Carpeting
Bow type headliner. Perforated
Seat Belts with Pushbutton Buckles for all Passenger Positions. Separate Shoulder Belts with Push button buckles for driver and right front passenger
Black Seat Belts (color keyed available AK1)
Floor Mounted Dimmer Switch
Flame Chestnut Applique on Instrument Panel
160 MPH Speedometer Graduated in Miles Per Hour
Console (D55) Available
Upper Level Ventilation
Exterior Features
Endura Front Bumper
Grille Styling with Argent Accent with PONTIAC Emblem.
350 emblem on Front Fender when equipped with L30 350 cid engine option, or 400 with the L65 engine.
Esprit Nameplate on Roof Sail Panel
Chrome Rear Bumper
Firebird Nameplate on front fender
Right- and Left-hand Body-colored Outside Mirrors - Left-hand Remote Controlled
Body Color Inserts in Outside Door Handles Part of Custom Trim group (Y90)
Firebird Emblem on Deck Lid
Concealed Windshield Wipers (C24)
Wide Rocker Panel Moldings
Chrome Roof Drip with Scalp Moldings (B80)
Hood Rear Edge and Belt Reveal Moldings
Front and Rear Wheel Opening Moldings
Bright Windshield and Rear Window Moldings
Bright Headlamp Bezels
Windshield Radio Antenna
Other
Dual Horns (U05)
Standard Engine
L30 350 cid (5.7 Litre) V-8 2bbl (L30)
Optional Engine
L65 400 cid (6.6 Litre) V-8 2bbl
Standard Transmission
M12 3 Speed Manual, Floor Shift
Optional Transmission
M20 4 Speed Manual Transmission
M35 2-Speed Automatic Transmission with L30 350 V8 only
M38 3-Speed Turbo Hydra-matic Transmission
M40 Turbo Hydramatic with 400 V8 (L65)
Steering
Manual Steering
Variable Ratio Power Steering Available (N41)
Suspension
Independent Front Suspension with upper and lower control arms, coil springs and tubular shocks. Rear Hotchkiss solid Axle with multi-leaf springs
0.940 inch Front Stabilizer bar
Brakes
Manual Front Disc Brakes-Rear Drum Brakes
Power Front Disc, Rear Drum Available (J50)
Differential
Solid Rear Axle
G80 Safe T Track Differential Available
Axle Ratios
3.42:1 (with Manual Transmission)
2.73:1 with Automatic Transmission
Optional Axle Ratio
G92 Performance Axle
3:08:1 (with automatic Transmission)
Wheels/Hubcaps
Standard Hubcaps with Trim Rings (P06)
14" X 7"
Available Wheels/Hubcaps
Custom Finned Wheel Covers (P02)
Deluxe Wheel Covers (P01)
Rally II Wheels with Trim Rings (N98)
Honeycomb Wheels (P05)
Standard Tires
E78 X 14 Blackwall Tires
Available Tires
F70 X 14 Blackwall Fiberglass Tires (PY6)
F78 X 14 Whitewall Fiberglass Tires (PX6)
E78 X 14 Whitewall Fiberglass Tires (PL3)
F70 X 14 Raised White Letter Fiberglass Tires (PL4)

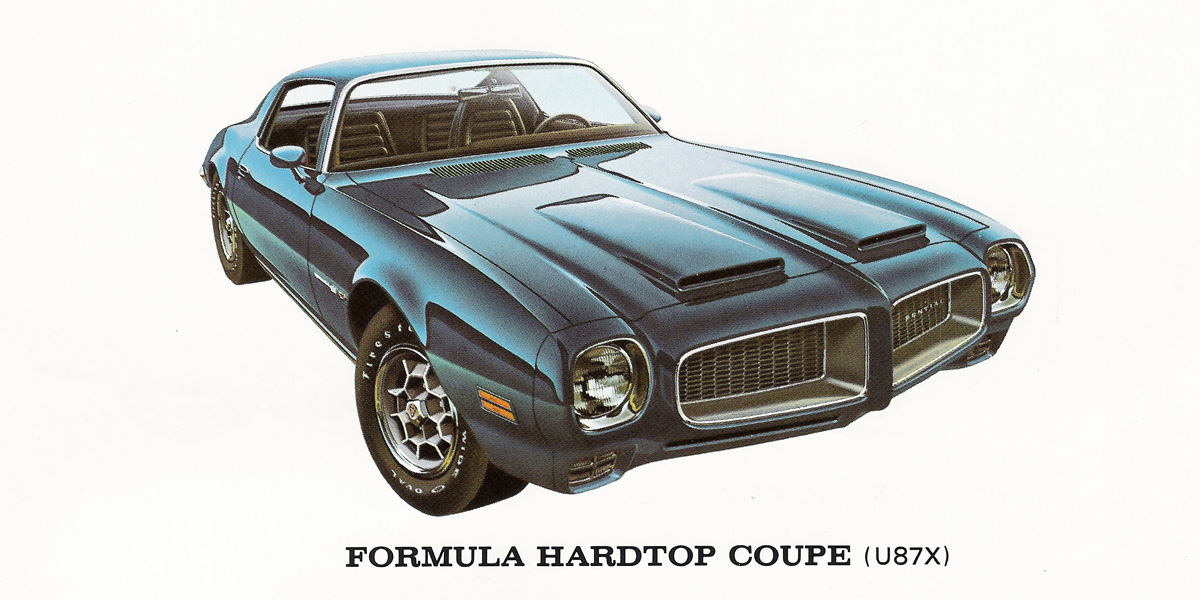

Formula U87

Interior Features
Standard Interior
Vinyl Strato Bucket Seats with integrated headrest
Standard door panels with map pockets
Custom Interior (Y90) available
Other Interior Features
Custom Cushion Three Spoke Steering Wheel (N30) in Interior Matching Color
Nylon Blend Loop-pile Carpeting
Bow type headliner. Perforated
Seat Belts with Pushbutton Buckles for all Passenger Positions. Separate Shoulder Belts with Push button buckles for driver and right front passenger
Black Seat Belts (color keyed available AK1)
Floor Mounted Dimmer Switch
Flame Chestnut Applique on Instrument Panel
160 MPH Speedometer Graduated in Miles Per Hour
Console (D55) Available
Upper Level Ventilation
Exterior Features
Endura Front Bumper
Grille Styling with Argent Accent with PONTIAC Emblem.
Chrome Rear Bumper
Fiberglass Hood with Simulated Dual Snorkel Intakes
Firebird Nameplate on front fender
FORMULA 350, FORMULA 400 or FORMULA 455 Emblems on Fenders matching the engine size ordered,
Right- and Left-hand Body-colored Outside Mirrors - Left-hand Remote Controlled
Firebird Emblem on Deck Lid (Except with Spoiler)
Rear Air Spoiler (D80) Optional
Exposed Windshield Wipers
C24 Concealed Wipers Available
Narrow Rocker Panel Moldings
Bright Windshield and Rear Window Moldings
Bright Headlamp Bezels
Chrome Exhaust Tips
Windshield Radio Antenna
Other
Dual Horns (U05)
Standard Engine
L30 350 cid (5.7 Litre) V-8 2bbl (L30)
Optional Engine
L78 400 cid (6.6 Litre) 4bbl
LS5 455 cid (7.5 Litre) V-8 HO, 4bbl
Standard Transmission
M12 3 Speed Manual, Floor Shift
Optional Transmission
M20 4 Speed Manual Transmission with L30 350 V8
M22 4 Speed Manual (Close Ratio) Transmission with 400 and 455 V8s
M35 2-Speed Automatic Transmission with L30 350 V8 Only
M38 3-Speed Turbo Hydra-matic Transmission with L30 350 V8
M40 3-Speed Turbo Hydramatic Transmission available with all 400 and 455 V8s.
Steering
Manual Steering
Variable Ratio Power Steering Available (N41)
Suspension
Independent Front Suspension with upper and lower control arms, coil springs and tubular shocks. Rear Hotchkiss solid Axle with multi-leaf springs
Heavy Duty Front Coil Springs
Heavy Duty Firm Control Tubular Shocks
1.125 inch Front Stabilizer bar
0.620 inch Rear Stabilizer Bar
Brakes
Manual Front Disc Brakes-Rear Drum Brakes
Power Front Disc, Rear Drum Available (J50)
Differential
Solid Rear Axle
G80 Safe T Track Differential Available
Axle Ratios
3.42:1 (with Manual Transmission)
2.73:1 (with L30 350 V8 and Automatic Transmission)
3.08:1 with L78 400 and Automatic Transmission
3.42:1 with 455 V8 (L75 or LS5) and 3 Speed Turbo Hydramatic (M40) and without C60 Air Conditioning
3.08:1 with 455 V8 (L75 or LS5) and 3 Speed Turbo Hydramatic (M40) and with C60 Air Conditioning
Optional Axle Ratio
G92 Performance Axle
3:08:1 (with automatic Transmission)
3.42:1 (with L78 400 V8 and M40 3 speed Automatic)
Wheels/Hubcaps
Standard Hubcaps
14" X 7"
Available Wheels/Hubcaps
Custom Finned Wheel Covers (P02)
Deluxe Wheel Covers (P01)
Rally II Wheels including Trim Rings (N98) 14" x 7" (15" x 7" When the Y99 Formula Handling Package was ordered)
Honeycomb Wheels (P05) 14" x 7" (15" x 7" When the Y99 Formula Handling Package was ordered)
Wheel Trim Rings (P06) with Standard Hubcap only
Standard Tires
F70 X 14 Blackwall Fiberglass Tires (PY6)
Available Tires
F70 X 14 Raised White Letter Fiberglass Tires (PL4)

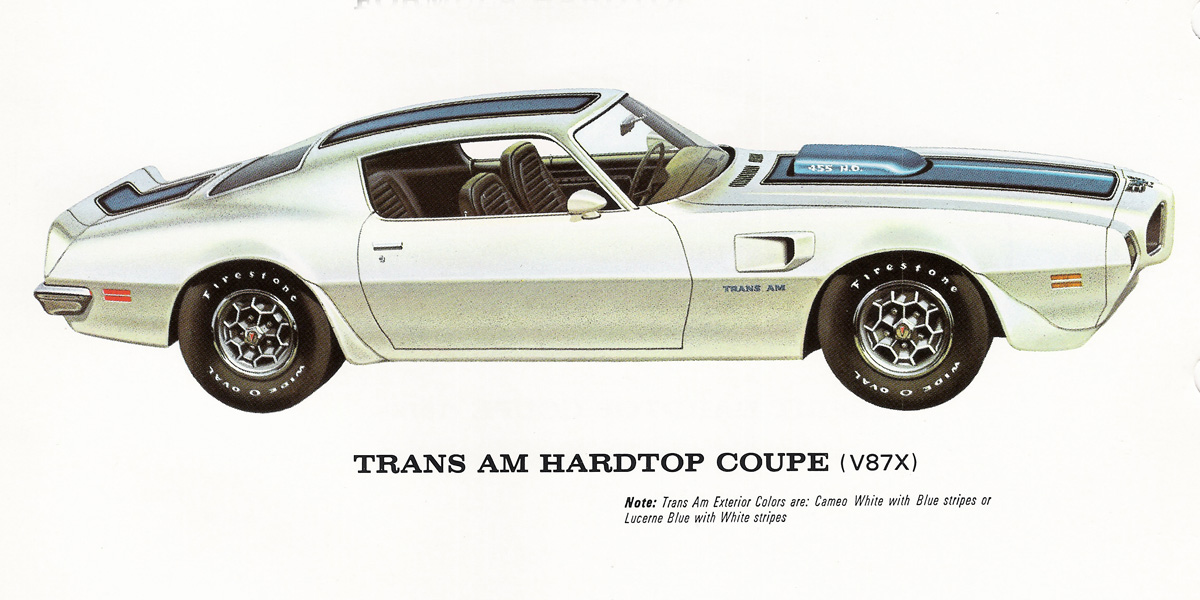

Trans Am V87

Interior Features
Standard Interior
Vinyl Strato Bucket Seats with integrated headrest
Standard door panels with map pockets
Custom Interior (Y90) available
Other Interior Features
Formula Steering Wheel Black (NK3)
Nylon Blend Loop-pile Carpeting
Bow type headliner. Perforated
Seat Belts with Pushbutton Buckles for all Passenger Positions. Separate Shoulder Belts with Push button buckles for driver and right front passenger
Black Seat Belts (color keyed available AK1)
Floor Mounted Dimmer Switch
Engine-turned Instrument Panel Plate with Black Trim
Rally Guages, Clock & Instrument Panel Tachometer (U30) and 160 MPH Speedometer Graduated in Miles Per Hour
Console (D55) Available
Upper Level Ventilation
Exterior Features
Endura Front Bumper
Black Textured Grille (no emblem)
Special Bird Decal on Front Bumper
Front Center Air Dam and Rear Wheel Opening Air Spoiler
Chrome Rear Bumper
Shaker Hood with Special Rear Facing Cold Air Intake (Throttle Controlled)
Trans Am Decal on Front Fender
Functional Front Fender Air Extractors
Right- and Left-hand Body-colored Outside Mirrors - Left-hand Remote Controlled
Single Stripes on Hood, Roof, and Rear Deck Lid
Rear Spoiler with TRANS AM decal
Concealed Windshield Wipers (C24)
No Rocker Panel Moldings
Bright Windshield and Rear Window Moldings
Bright Headlamp Bezels
Chrome Exhaust Tips
Windshield Radio Antenna
Other
Dual Horns (U05)
Standard Engine
LS5 455 cid (7.5 Litre) V-8 HO, 4bbl
Standard Transmission
M22 4 Speed Manual Close Ratio Transmission
Optional Transmission
M40 3-Speed Turbo Hydramatic Transmission
Steering
Variable Ratio Power Steering Available (N41)
Suspension
Independent Front Suspension with upper and lower control arms, coil springs and tubular shocks. Rear Hotchkiss solid Axle with multi-leaf springs
Heavy Duty Front Coil Springs
Heavy Duty Firm Control Tubular Shocks
1.250 inch Front Stabilizer Bar
0.875 inch (7/8) Rear Stabilizer Bar
Brakes
Power Front Disc Brakes-Rear Drum Brakes (J50)
Differential
Safe-T-Track Differential (G80)
Axle Ratios
3.42:1 with M22 4 speed Close Ratio Manual Transmission
3.42:1 with M40 Turbo Hydramatic without C60 Air Conditioning
3.08:1 with M40 Turbo Hydramatic with C60 Air Conditioning
Optional Axle Ratio
G92 Performance Axle
Wheels/Hubcaps
Rally II Wheels with Trim Rings (N98)
15" X 7"
Available Wheels/Hubcaps
Honeycomb Wheels (P05) 15 inch
Standard Tires
F60 X 15 White Letter Tires
