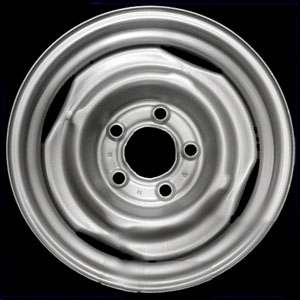

Typical GM Steel Wheel Shown

The standard GM steel wheel was used on models with the base hubcap or wheel disks.

Usage
All models except Trans Am.

Sizes
14" X 6" with Base Firebird and L22 250 cid 6 cylinder.
Stamped AM
Part No: 333274 (SUP 3975660)

14" X 7" All other V8 Models except Trans Am.
Stamped CL

Part No: 3975667

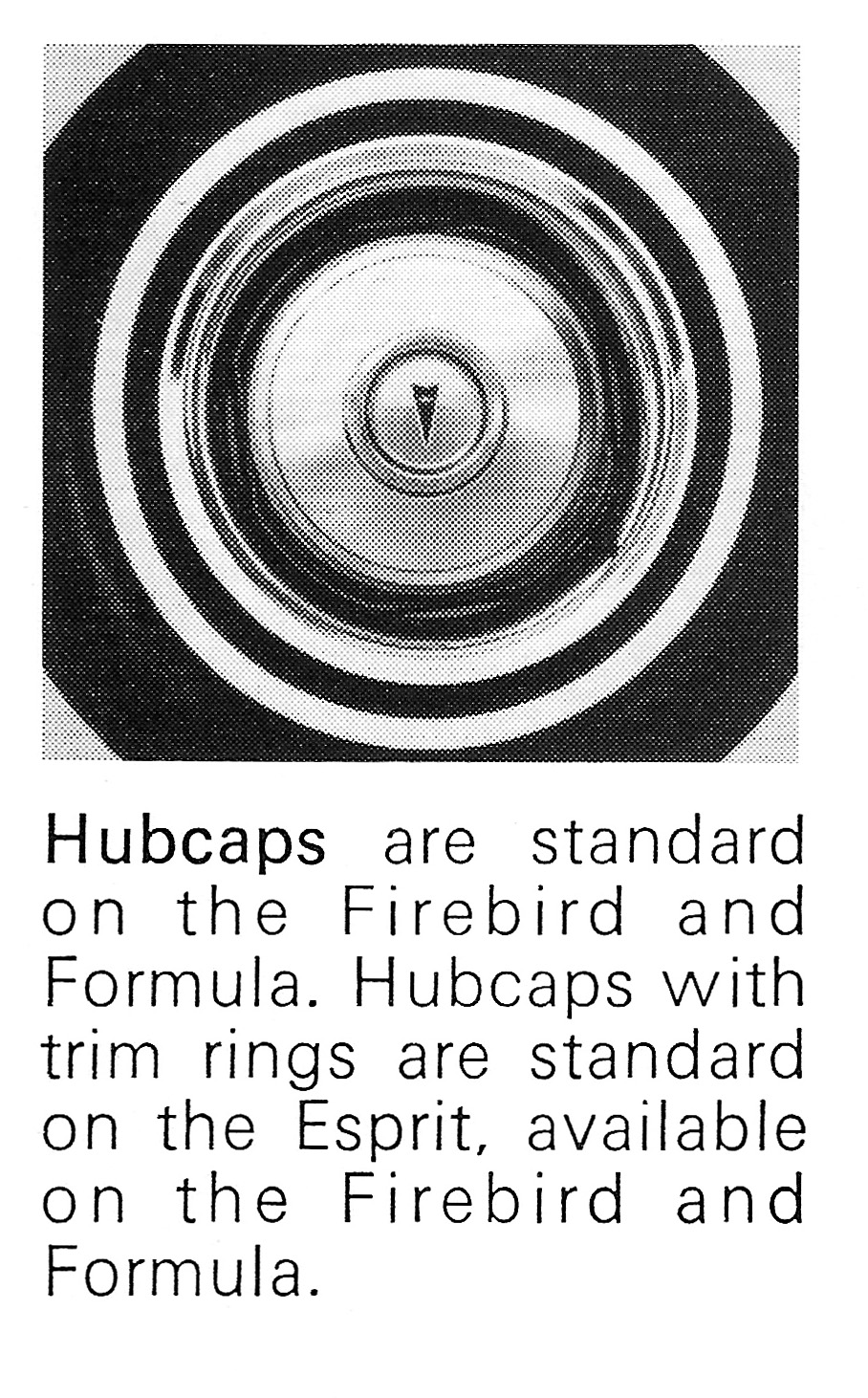

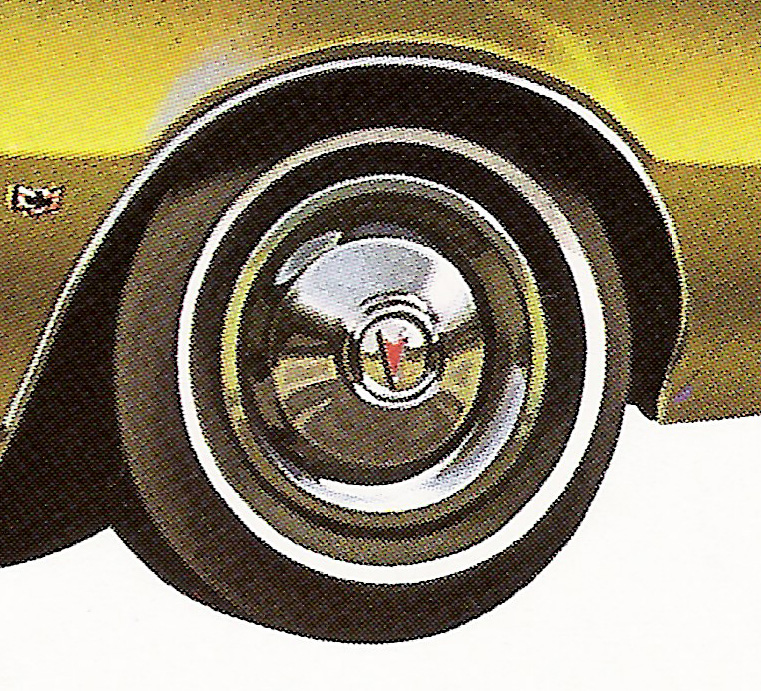

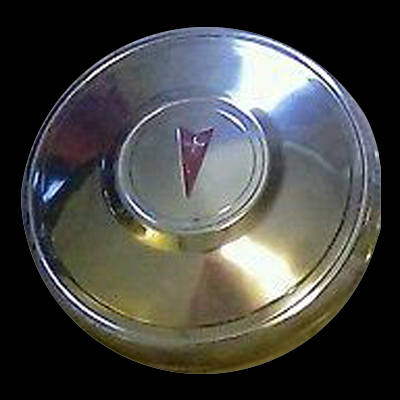

Standard Hub Cap

A new design for 1972 the hubcap would become a popular design.

Usage
Standard on Firebird, Esprit (with trim ring) and Formula.

Part No: 488630 (SUP 546621), 498800

The 1972 hub cap was unique to this year model until it returned in 1976 and continued through the second generation run through 1981.

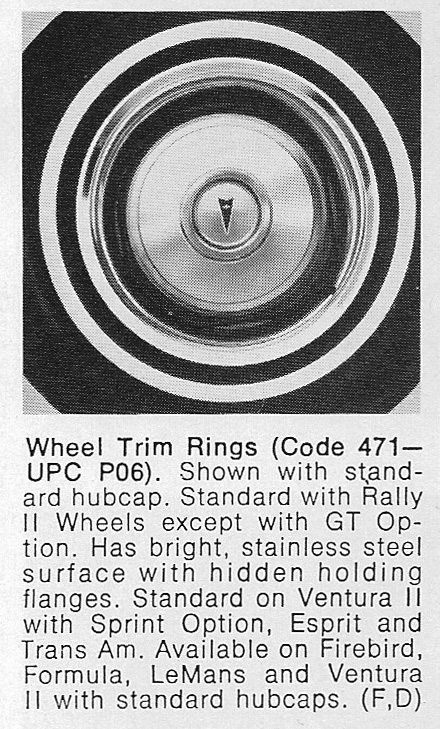

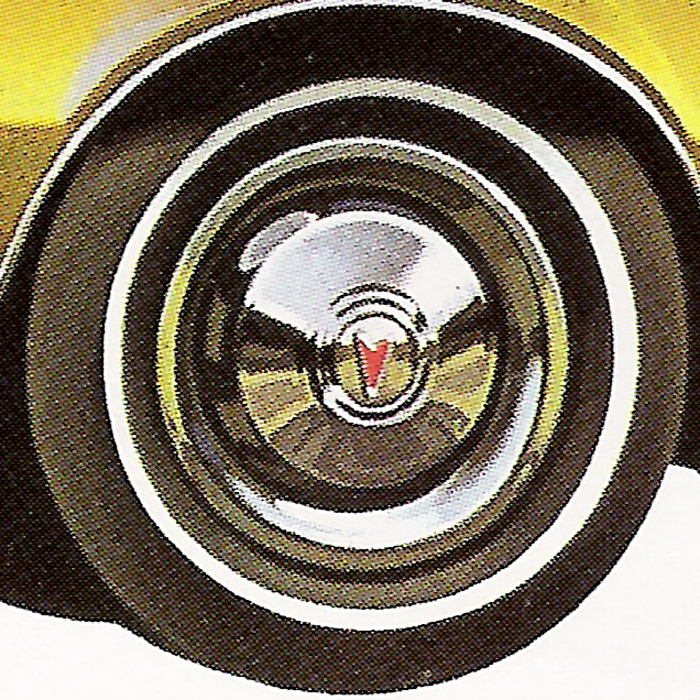

Option Code 471, UPC P06: Trim Ring

The chrome trim ring was standard on Esprit and available on Firebird and Formula at extra cost with the standard hub cap only. Trim rings were standard when Rally II wheels were ordered except on Trans Am* and Formula when 15 inch tires were ordered (TNL/PM7).

Usage
Standard on Esprit. Available on Firebird and Formula.
Not available with Optional Wheel Discs. Standard with N98 Rally II rims (14 inch).

Part No: 9781480 for 6 inch wheel
Part No: 9796919 for 7 inch wheel

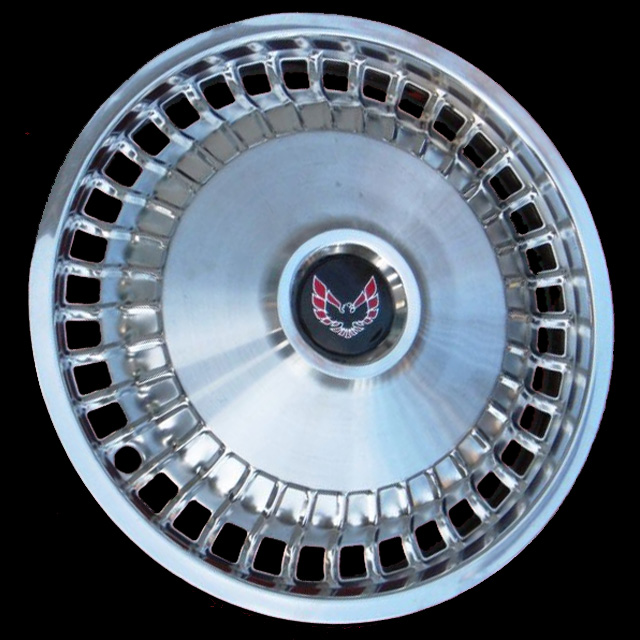

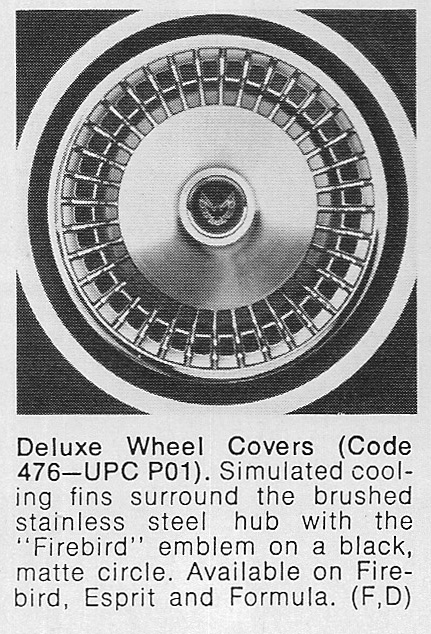

Option Code 476, UPC P02: Deluxe Wheel Disks

Deluxe Wheel Covers were offered as option 472/P02 in 1971 but renamed in 1972 to avoid naming conflict with the new Custom Finned Wheel cover, an all new offering, now re-coded P02.
This wheel cover still featured brushed stainless steel appearance surrounded by simulated cooling fins but for 72 the center featured a new Firebird logo.

Usage
Available on Firebird, Esprit, and Formula.

Part No: 9890699 (SUP 989057)

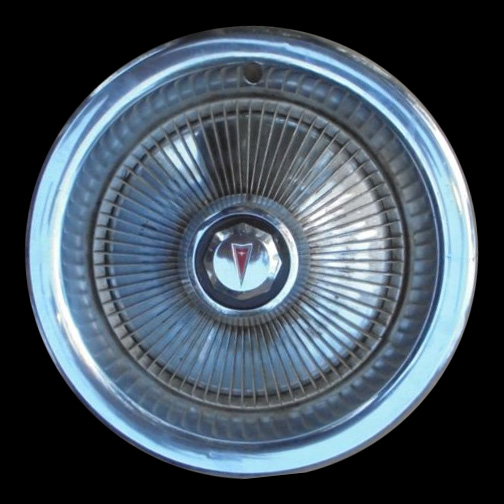

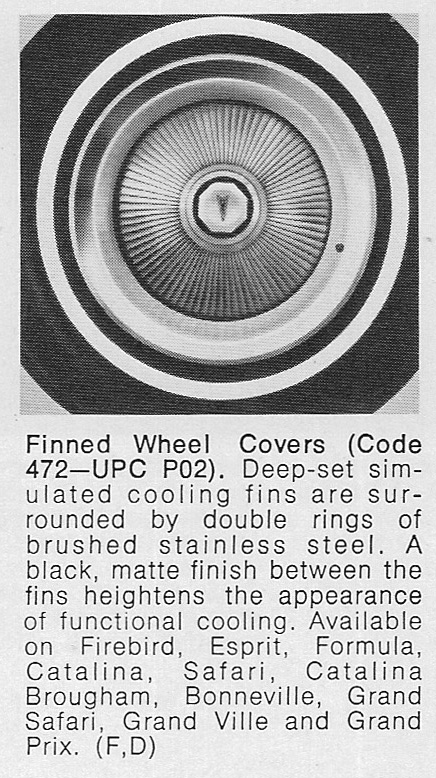

Option Code 472, UPC P02: Custom Finned Wheel Covers

Not to be confused with the Custom Wheel Cover of 1971 (now offered as the Deluxe Wheel Cover, Option P01) the Custom Finned Wheel Cover was new for 1972 on Firebird.

Usage
Available on Firebird, Esprit, and Formula.

Part No: 486553

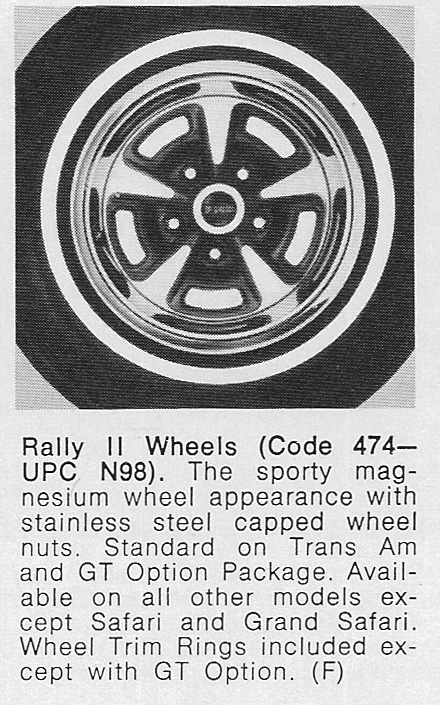

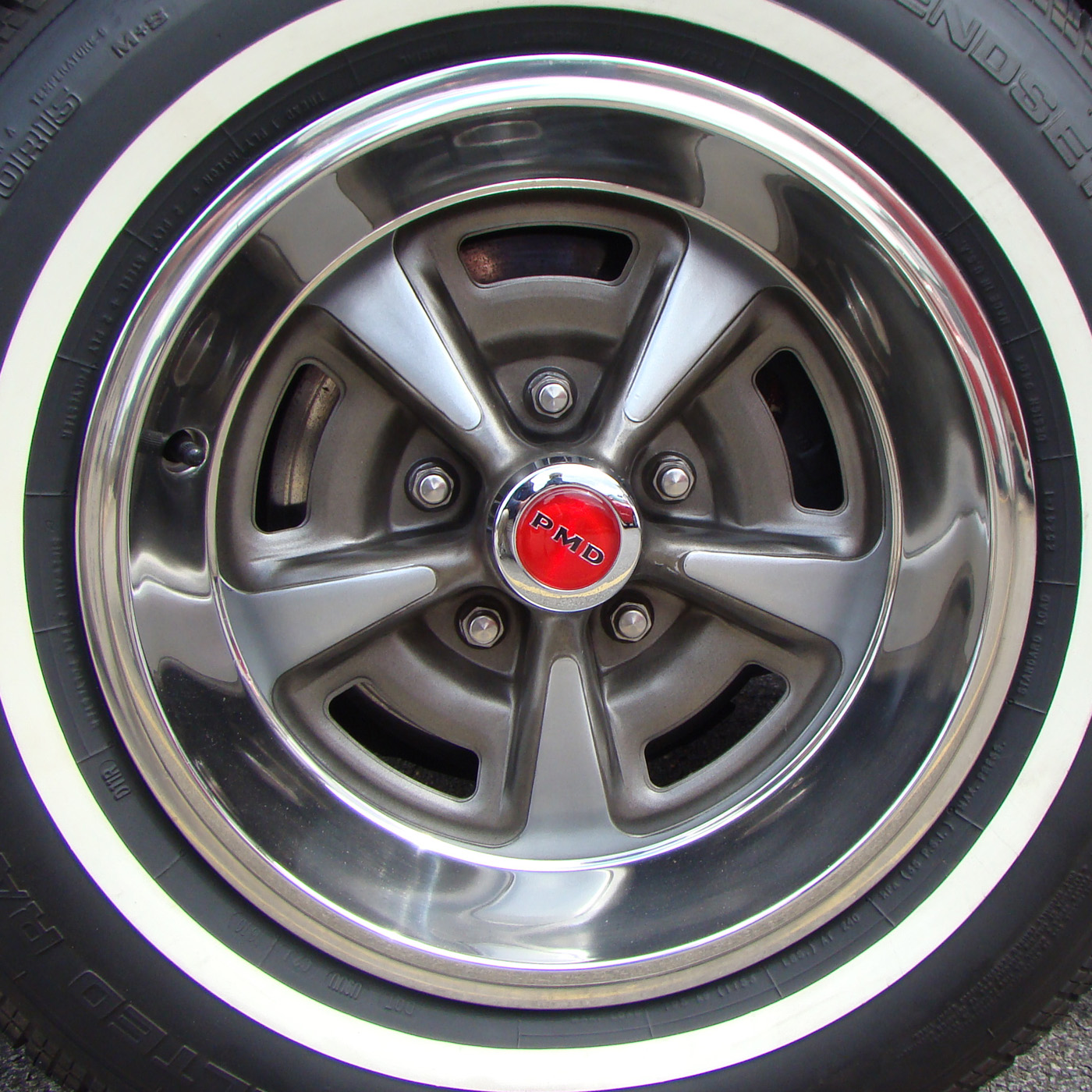

Option Code 474, UPC N98: Rally II Wheels with Trim Rings

14-inch diameter. Chrome-plated wheel nuts (Conventional spare wheel provided with Space-Saver Spare Tire).

Usage
Available on Firebird, Esprit, and Formula.

Size
14" X 7", Stamped KS
Part No: 485455
Ornament - Red: Part No 480301
Trim Ring: Part No 9796919

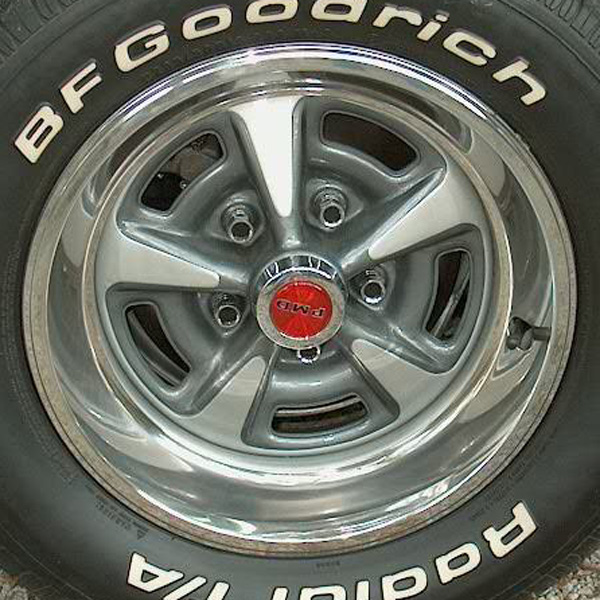

The dechromed Rally II wheels were still standard on Trans Am but for 1972 trim rings were added as standard equipment with the 15 inch wheel.
The design ofthe Rally II wheels was slightly altered but it is difficult to tell with the standard trim, rings covering them. The inner radius was significantly less wide.

Usage
Standard on Trans Am. Available on Formula with Y99 Performance Package or when option TNL/PM7: Tires, F60 X 15 Raised White Letter with 15 inch Rally II Rims.

Size
15" X 7", Stamped KR
Later verisons may have been stamped HM Part No: 485454
Ornament - Red: Part No 480301
Trim Ring - 9796696

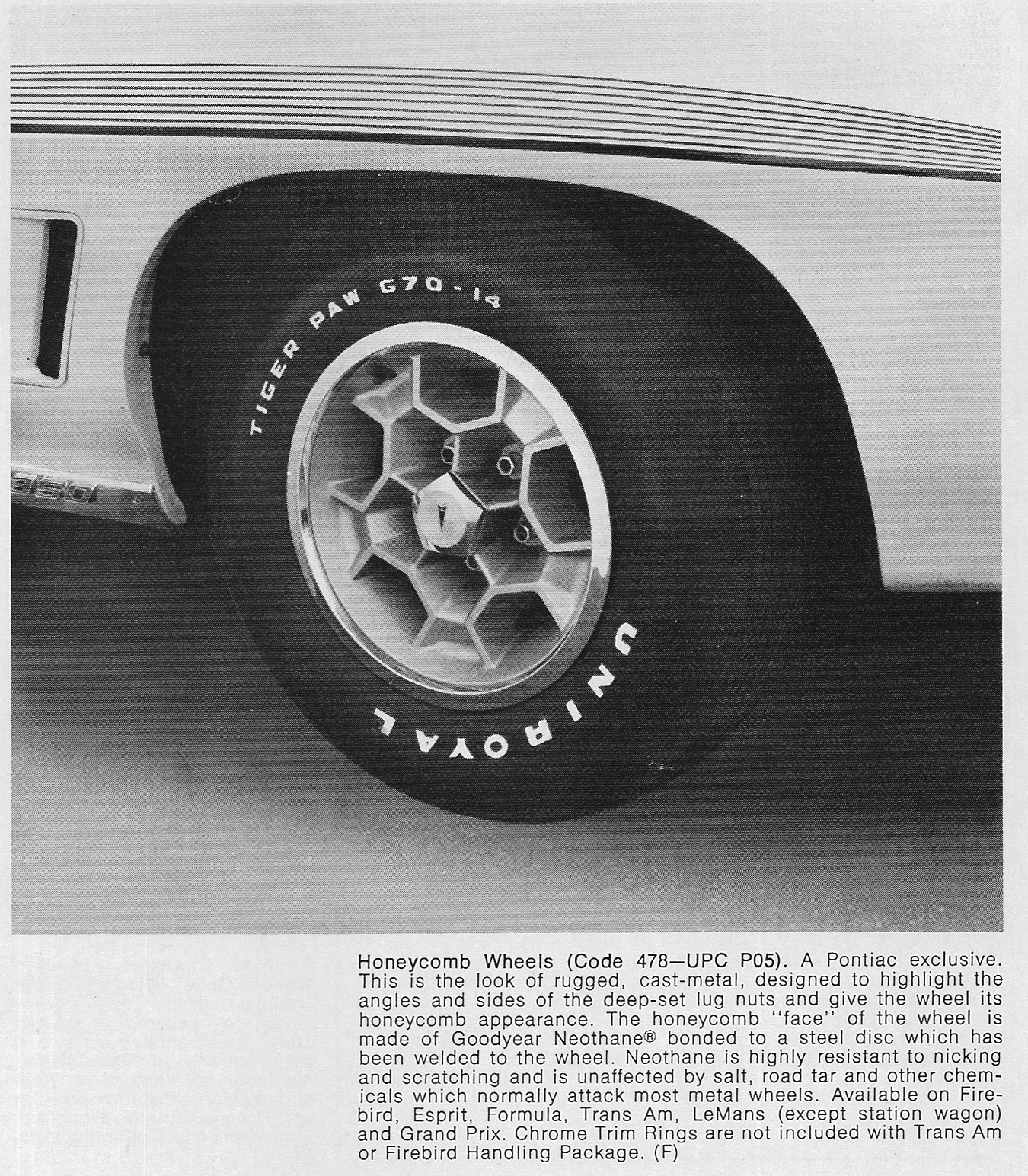

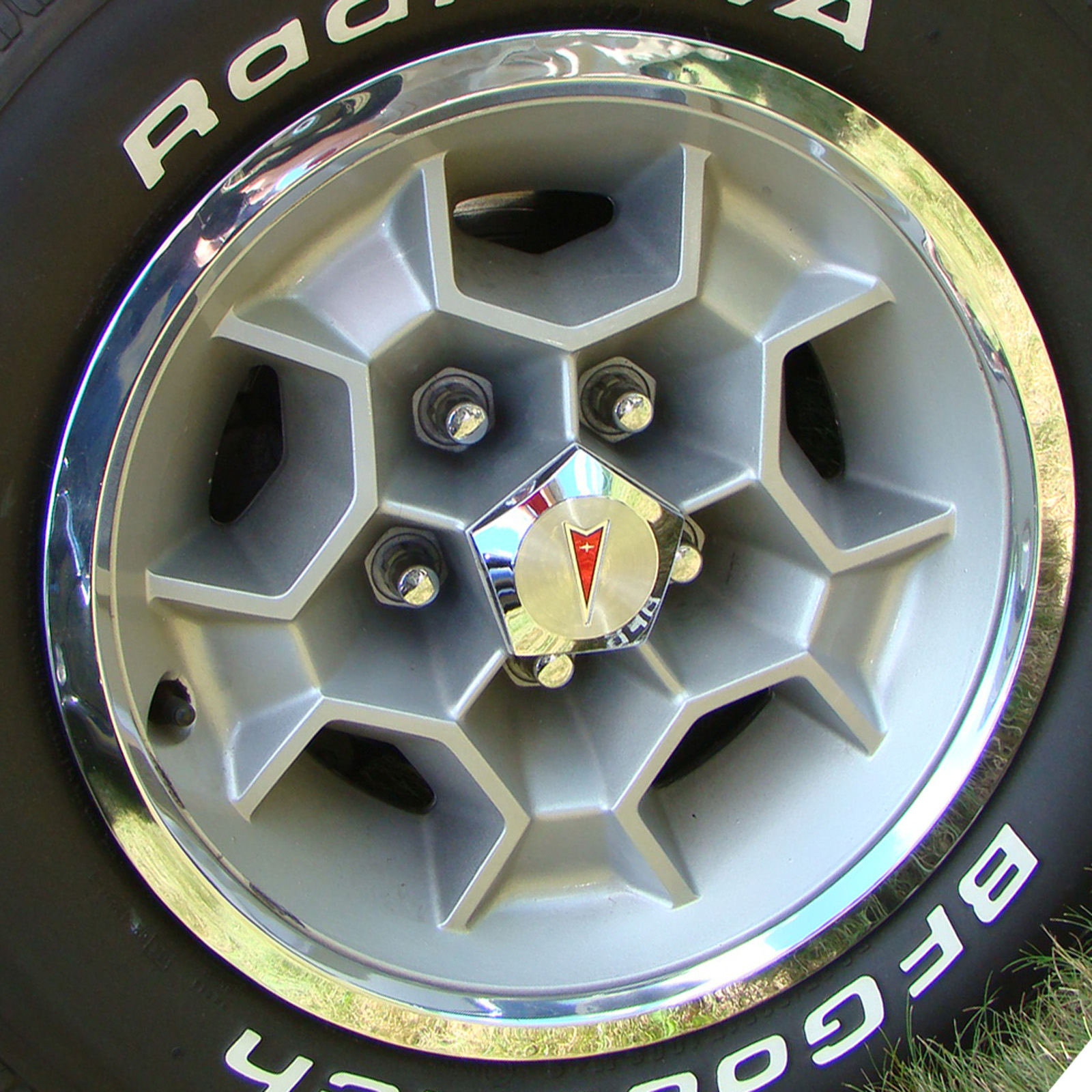

Shown with trim ring

Usage
Optional on Trans Am or Formula with Y99 Performance Package or with option TNL/PM7: Tires, F60 X 15 Raised White Letter with 15 inch Rally II Rims.

Size
14" X 7"
Part No: 483084
Ornament - 9791068
Trim Ring - 483250

Shown with trim ring

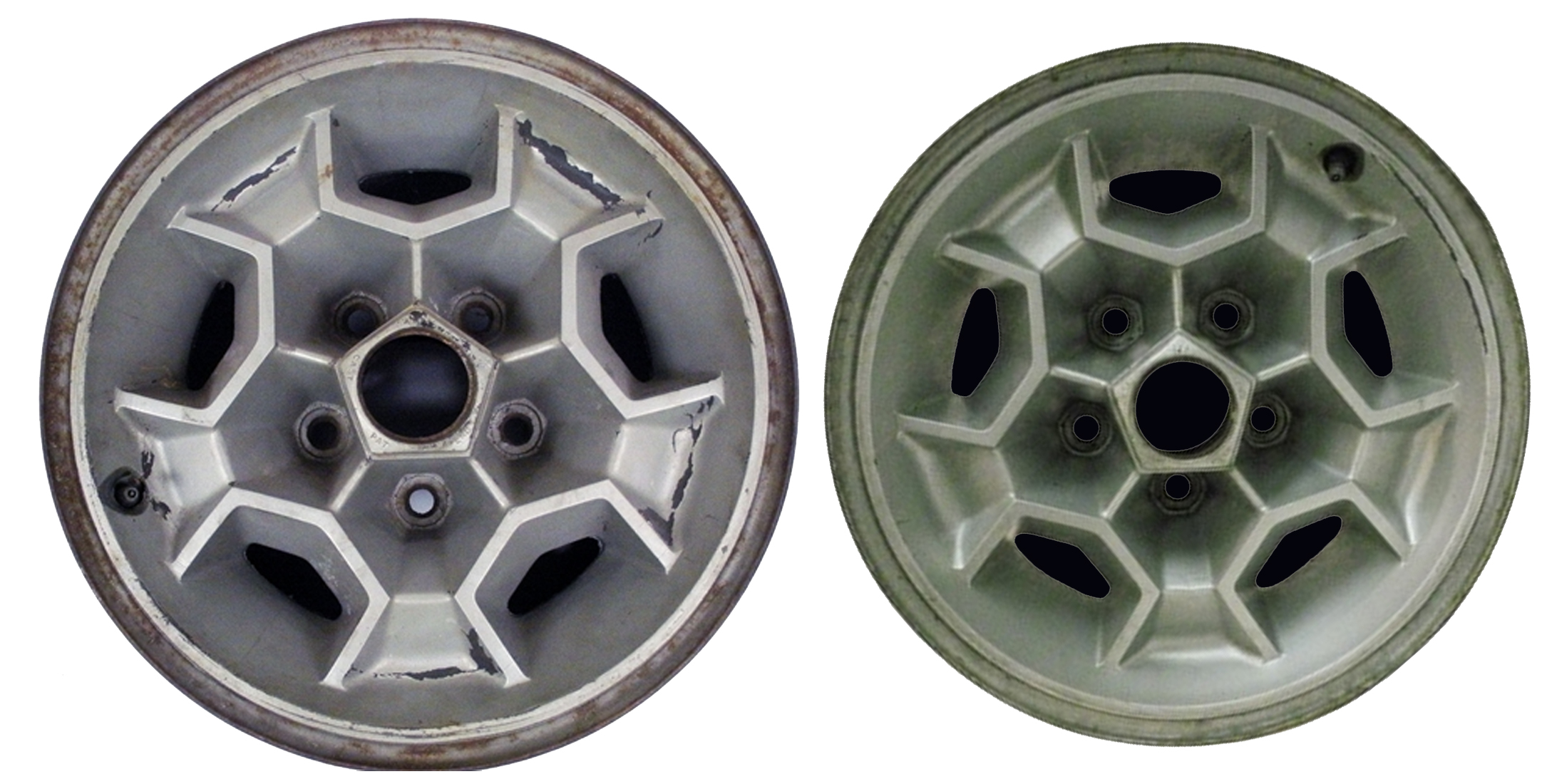

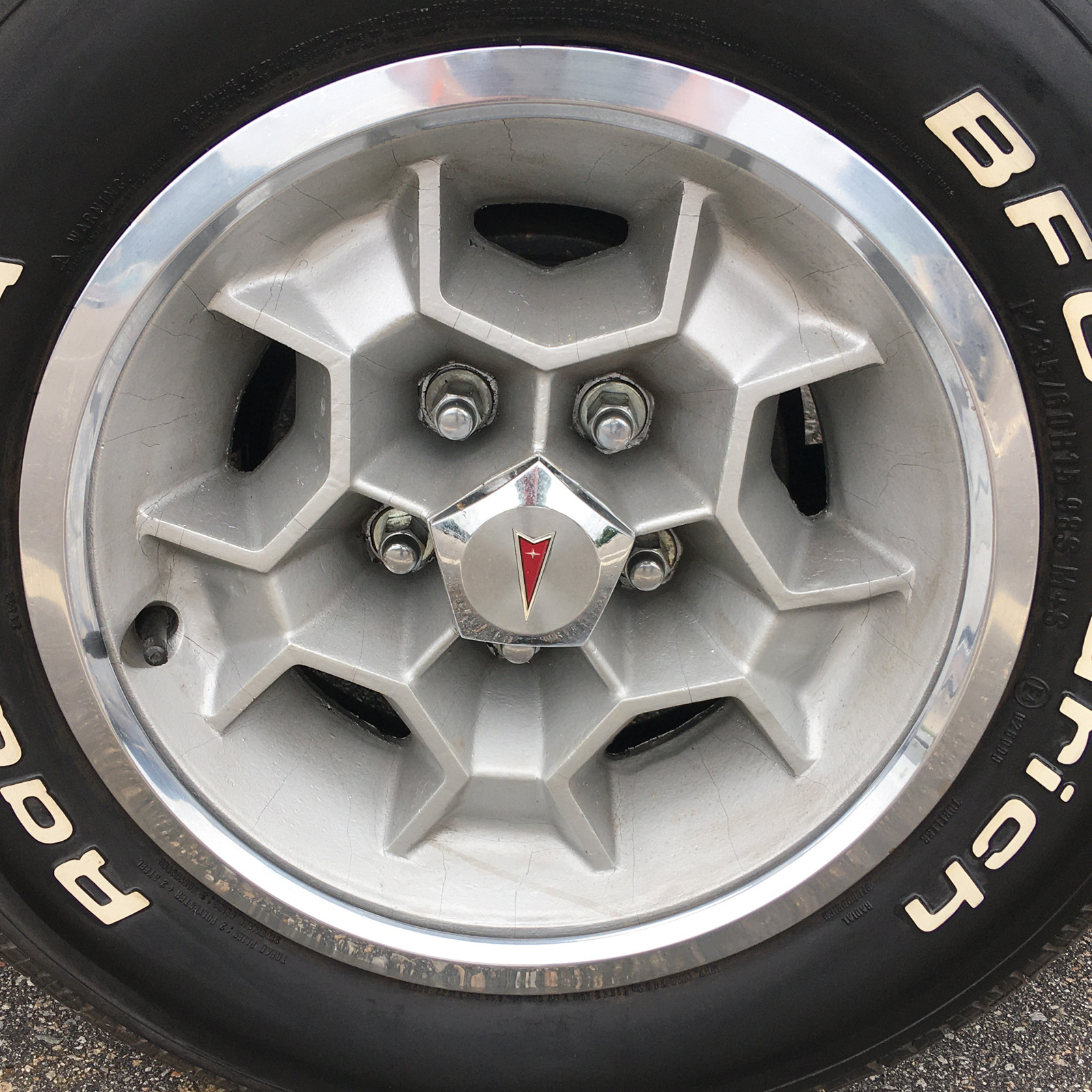

Originally standard on Trans Am it became an option after production problems. The 15 inch wheel was option on Trans Am, Formula with the Y99 Handling package, or Formula with 15 inch raised white letter tires (PM7).

Usage
Optional on Trans Am or Formula with Y99 Performance Package or when option TNL/PM7: Tires, F60 X 15 Raised White Letter with 15 inch Rally II Rims.

Size
15" X 7"
Part No: 484425
Ornament - 9795568
Trim Ring -

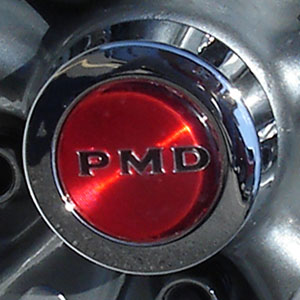

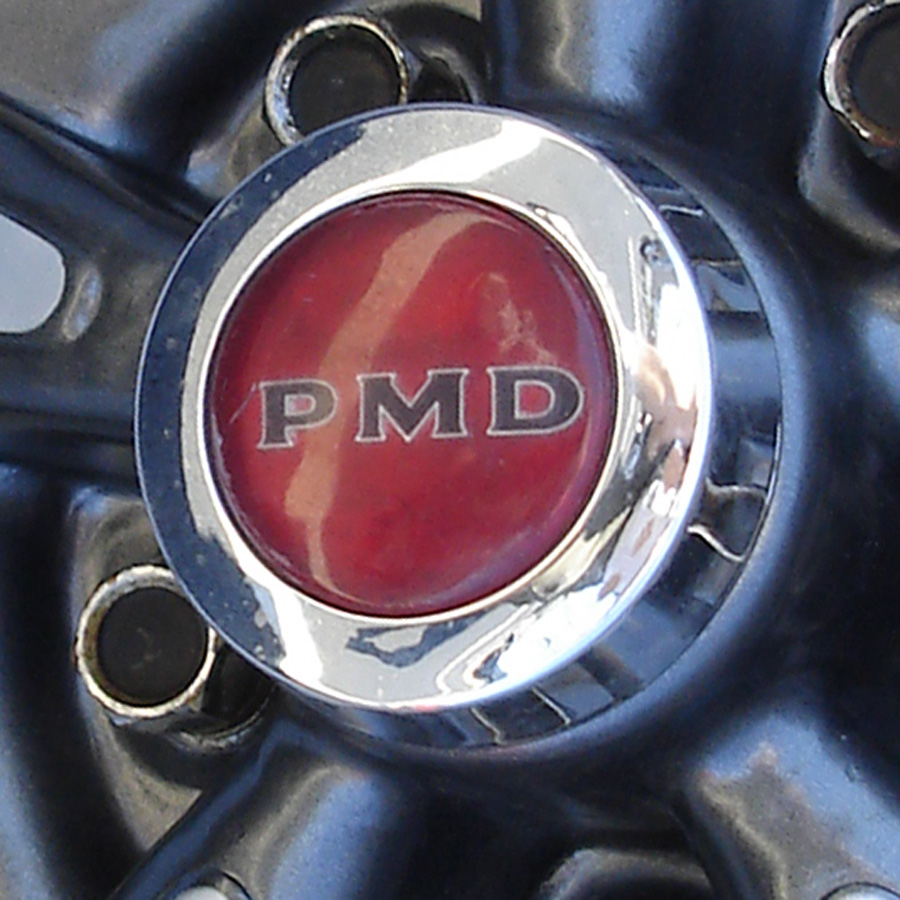

Red PMD center caps were the only center cap for Rally II wheels in 1972. These center caps were used from 1970 to 1972.

Part No: 480301

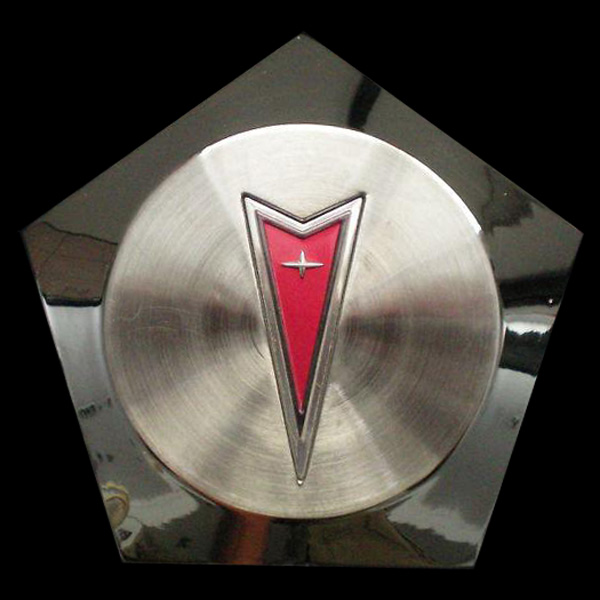

The center cap for the Honeycomb wheel was unique to the 1972 in that it featured a plain face. Later ornaments with have a Pontiac arrowhead logo.

Part No: 9791068

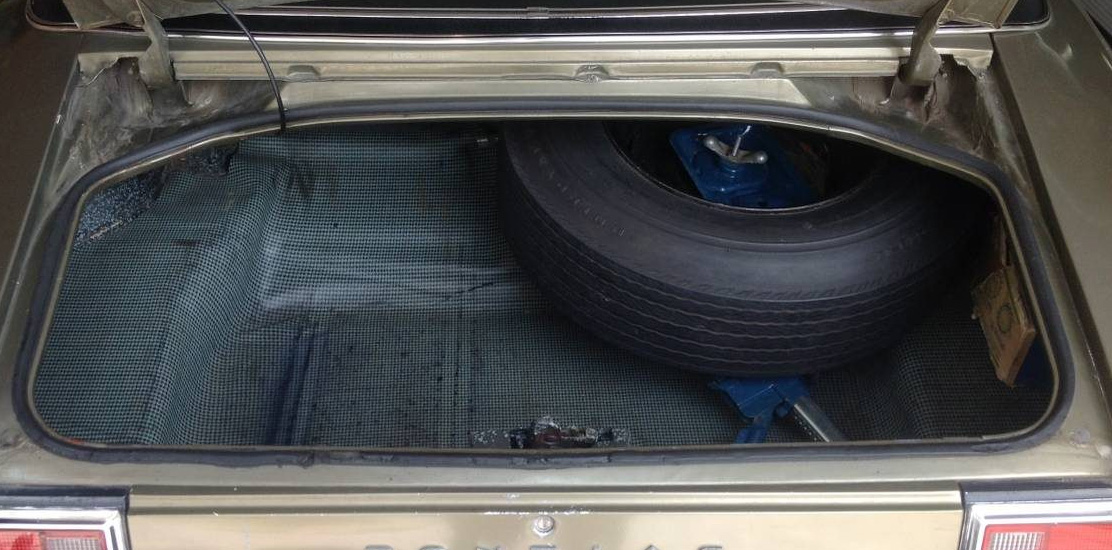

The conventional spare tire came with the standard steel wheel. If Rally II wheels were specified, a fifth Rally II wheel was supplied with the spare, unless the Space Saver Spare (UPC N65) was ordered.

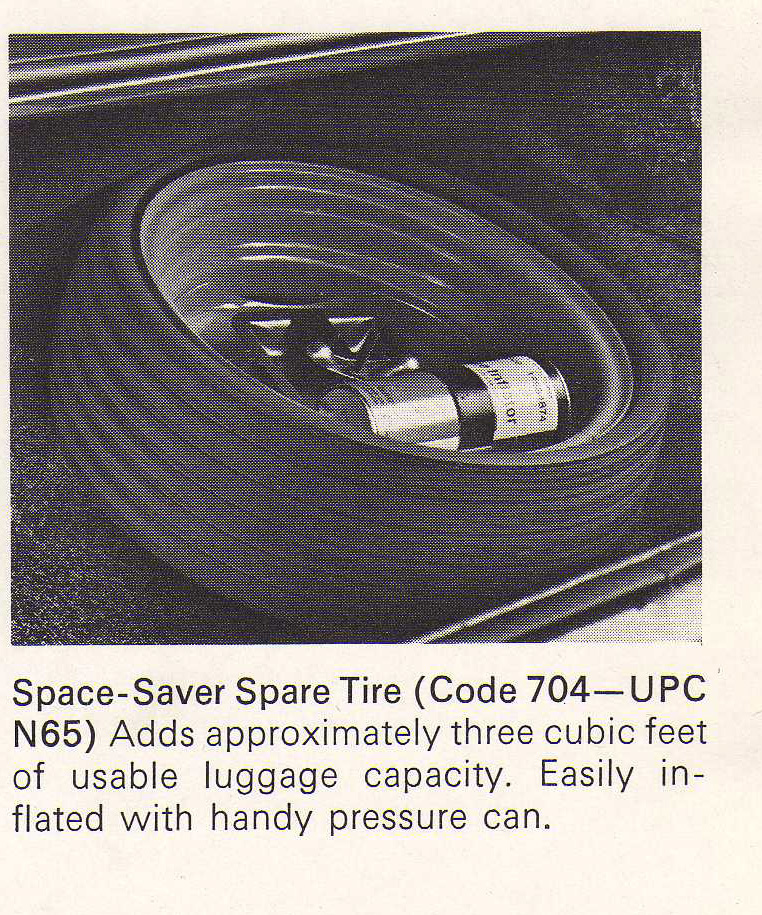

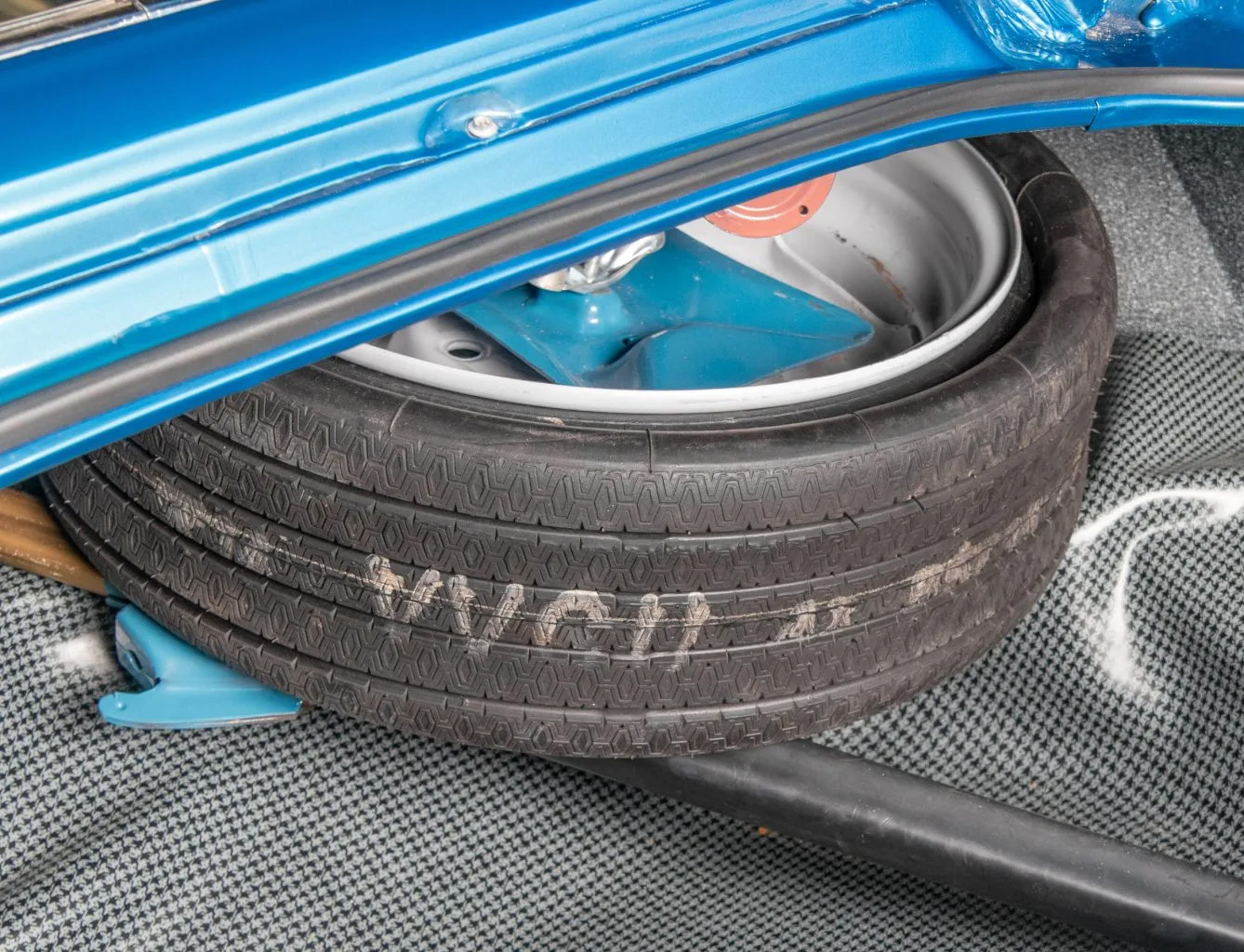

Option Code 704 - UPC N65: Space Saver Spare Tire
Adds approximately three cubic feet of usable luggage capacity. Easily inflated with handy pressure can. 1972 Version shown.

Usage
Available on all Firebird models.
Standard on Trans Am and all Firebirds with Rally II Rims.

Part No: 9792737 for 5 inch wide Space Saver. Stamped HI.
Part No: 9793592 for 6 inch wide Space Saver. Stamped KC.
It is uncertain which wheels were delivered with Firebirds. 14x5 or 14x6. Please note, this photo is an example and the inflator cannister is not factory correct for this model year.

Tires available on 1972 Firebirds E78 X 14 Blackwall tires (THF)
Standard Firebird, Esprit. Not available Formula and Trans Am.

F70 X 14 Raised White Letter (TML/PL4)
Optional Firebird, Esprit and Formula.

F70 X 14 Blackwall Tires (TMF/PY6)
Optional Firebird and Esprit. Standard Formula


F78 X 14 Whitewall Tires (TGR/PX6)
Optional Firebird and Esprit.


E78 X 14 Whitewall Tires (THR/PL3) Optional Firebird and Esprit.


F60 X 15 Raised White Letter Tires with 15 inch Rally II Rims (TNL/PM7) Standard Trans Am
Optional Formula with 15 inch Rally II or 15 inch Honeycomb wheels.
