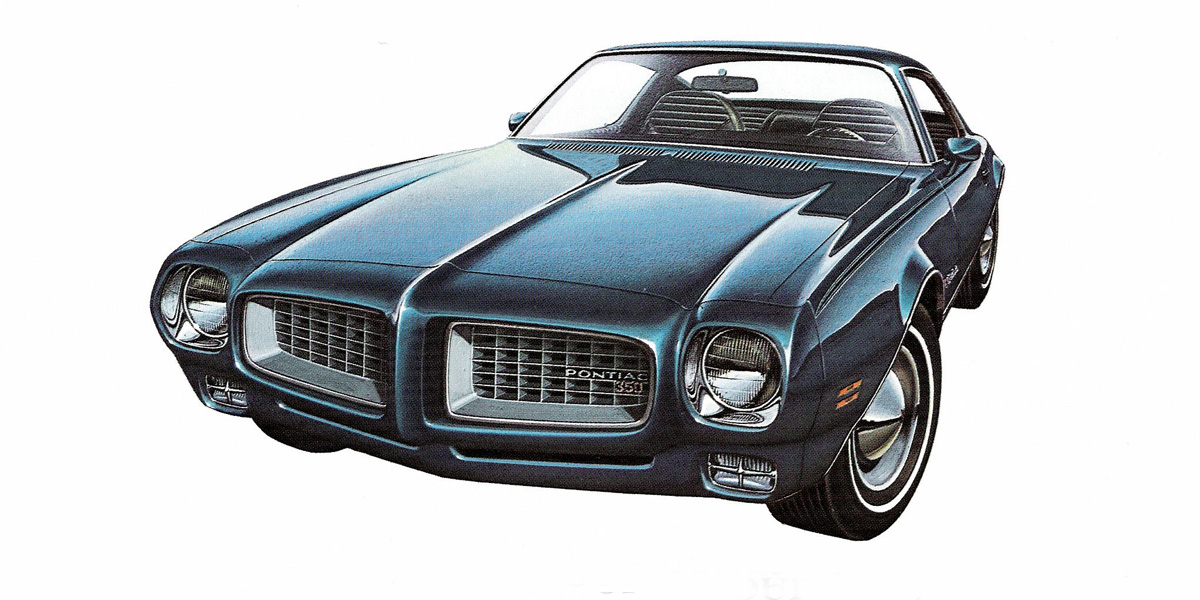

Base Firebird S87

Interior Features
Standard Interior
All Morrokide Vinyl Bucket Seats
Standard door panels with map pockets
Other Interior Features
Two spoke, shallow dish steering wheel. Black
Nylon Blend Loop-pile Carpeting
Solid 1 piece Headliner
Seat Belts with Push-button Buckles for all passenger positions. Shoulder Belts with Push Button buckles for driver and front passenger
Black Seat Belts (color keyed available AK1)
Floor Mounted Dimmer Switch
New Crossfire Mahogany Applique on Instrument Panel with new black instrument bezels.
160 MPH Speedometer Graduated in Miles Per Hour
Console (D55) Available
High-Low Level Body Ventilation
Exterior Features
Endura Front Bumper
Grille Styling with Argent Accent with PONTIAC Emblem.
350 emblem in Front Grille. If the L65 400 is ordered then
Chrome Rear Bumper
Firebird Nameplate on front fender
Chrome Rear View Mirror
Firebird Emblem on Deck Lid (Except with Spoiler)
Rear Air Spoiler (D80) Optional. Includes Spoiler Bird Decal in Black or White
Exposed Windshield Wipers
C24 Concealed Wipers Available
Narrow Rocker Panel Moldings
Bright Windshield and Rear Window Moldings
Bright Headlamp Bezels
Windshield Radio Antenna
Other
Single Horn
Standard Engine
L22 250 cid (4.1 Litre) Overhead Valve 6 Cyl, 1bbl
Optional Engine
L30 350 cid (5.7 Litre) V-8 2bbl
Standard Transmission
M12 3 Speed Manual, Floor Shift (New, replaces column shift)
Optional Transmission
M20 4 speed Manual Floor Shift (with 350 V8 Only)
M38 3-Speed Turbo Hydra-matic Transmission
Steering
Manual Steering
Variable Ratio Power Steering Available (N41)
Suspension
Independent Front Suspension with upper and lower control arms, coil springs and tubular shocks. Rear Hotchkiss solid Axle with multi-leaf springs
0.940 inch Front Stabilizer bar
Brakes
Manual Front Disc Brakes-Rear Drum Brakes
Power Front Disc, Rear Drum Available (JL2)
Differential
Solid Rear Axle
G80 Safe T Track Differential Available
Axle Ratios
3.08:1 (Manual Transmission)
2.73:1 (with 250 6 cyl and Automatic Transmission)
2.73:1 (with 350 and Automatic Transmission)
Optional Axle Ratio
G92 Performance Axle
3.42:1 (with 350 and Manual Transmission)
3.08:1 (with 350 and Automatic Transmission)
Wheels/Hubcaps
Standard Hubcaps
14" X 7"
Available Wheels/Hubcaps
Deluxe Wheel Covers (P01)
Custom Finned Wheel Covers (P02)
Rally II Wheels (N98)
Honeycomb Wheels (P05)
Wheel Trim Rings (P06) with Standard Hubcap only
Standard Tires
E78 X 14 Blackwall Fiberglass Tires
Available Tires
E78 X 14 Whitewall Fiberglass Tires (PL3)
F78-14 Blackwall Fiberglass Tires (PX5)
E78 X 14 Whitewall Fiberglass Tires (PX6)
F70-14 Blackwall Fiberglass Tires (PY6)

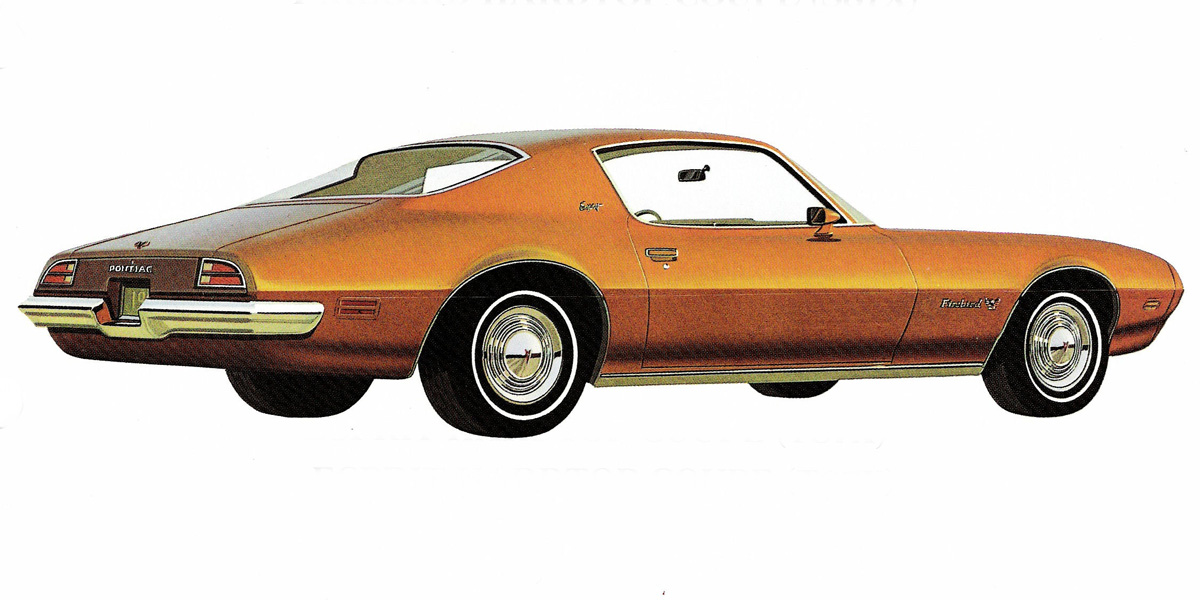

Firebird Esprit T87

Interior Features
Custom Interior (Y90)
Custom Morrokide and Perforated Morrokide Vinyl Bucket Seats
New Upgraded door panels with pull strap and map pockets below.
Instrument Panel Assist Strap
Rear Quarter Ashtrays
Formed Rubber Trunk Mat (B42)
Includes Exterior Door handle insert in body color
Other Interior Features
Custom Cushion Three Spoke Steering Wheel (N30) in Interior Matching Color
Nylon Blend Loop-pile Carpeting
Solid 1 piece Headliner
Roof Insulator Pads
Seat Belts with Push-button Buckles for all passenger positions. Shoulder Belts with Push Button buckles for driver and front passenger
Black Seat Belts (color keyed available AK1)
Floor Mounted Dimmer Switch
New Crossfire Mahogany Applique on Instrument Panel with new black instrument bezels.
160 MPH Speedometer Graduated in Miles Per Hour
Console (D55) Available
High-Low Level Body Ventilation
Exterior Features
Endura Front Bumper
Grille Styling with Argent Accent with PONTIAC Emblem.
350 emblem on Front Fender when equipped with L30 350 cid engine option, or 400 with the L65 engine.
Esprit Nameplate on Roof Sail Panel
Chrome Rear Bumper
Firebird Nameplate on front fender
Right- and Left-hand Body-colored Outside Mirrors - Left-hand Remote Controlled
Body Color Inserts in Outside Door Handles
Firebird Emblem on Deck Lid
Concealed Windshield Wipers (C24)
Wide Rocker Panel Moldings
Chrome Roof Drip with Scalp Moldings (B80)
Hood Rear Edge and Belt Reveal Moldings
Front and Rear Wheel Opening Moldings
Bright Windshield and Rear Window Moldings
Bright Headlamp Bezels
Windshield Radio Antenna
Other
Dual Horns
Standard Engine
L30 350 cid (5.7 Litre) V-8 2bbl
Optional Engine
L65 400 cid (6.6 Litre) V-8 2bbl
Standard Transmission
M12 3 Speed Manual, Floor Shift
Optional Transmission
M20 4 speed Manual Floor Shift (with 350 V8 Only)
M38 3-Speed Turbo Hydra-matic Transmission with L30 350 V8
M40 3 Speed Turbo Hydramatic with L65 400 V8
Steering
Manual Steering
Variable Ratio Power Steering Available (N41)
Suspension
Independent Front Suspension with upper and lower control arms, coil springs and tubular shocks. Rear Hotchkiss solid Axle with multi-leaf springs
0.940 inch Front Stabilizer bar
Brakes
Manual Front Disc Brakes-Rear Drum Brakes
Power Front Disc, Rear Drum Available (JL2)
Differential
Solid Rear Axle
G80 Safe T Track Differential Available
Axle Ratios
3.08:1 (350 with Manual Transmission)
2.73:1 (Automatic Transmission)
Optional Axle Ratio
G92 Performance Axle
3.42:1 (with Manual Transmissions)
3:08:1 (with automatic Transmission)
Wheels/Hubcaps
Deluxe Wheel Covers (P01)
14" X 7"
Available Wheels/Hubcaps
Custom Finned Wheel Covers (P02)
Rally II Wheels (N98)
Honeycomb Wheels (P05)
Standard Tires
E78 X 14 Blackwall Fiberglass Tires
Available Tires
E78 X 14 Whitewall Fiberglass Tires (PL3)
F78-14 Blackwall Fiberglass Tires (PX5)
E78 X 14 Whitewall Fiberglass Tires (PX6)
F70-14 Blackwall Fiberglass Tires (PY6)

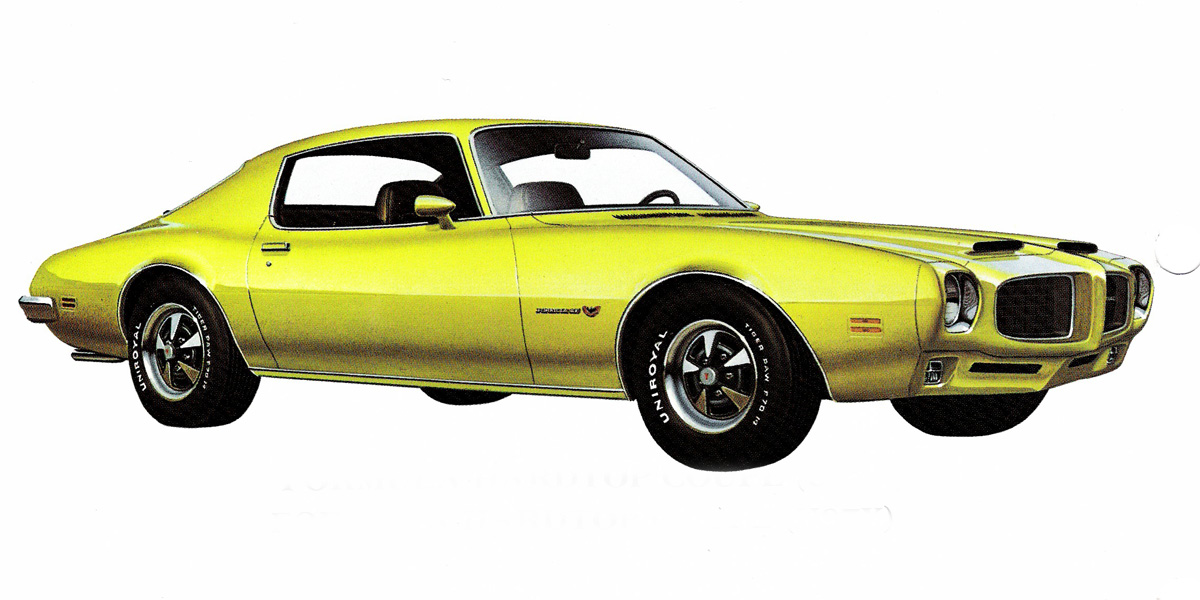

Formula U87

Interior Features
Standard Interior
All Morrokide Vinyl Bucket Seats
Standard door panels with map pockets
Custom Interior (Y90) available
Other Interior Features
Custom Cushion Three Spoke Steering Wheel (N30) in Interior Matching Color
Nylon Blend Loop-pile Carpeting
Solid 1 piece Headliner
Seat Belts with Push-button Buckles for all passenger positions. Shoulder Belts with Push Button buckles for driver and front passenger
Black Seat Belts (color keyed available AK1)
Floor Mounted Dimmer Switch
New Crossfire Mahogany Applique on Instrument Panel with new black instrument bezels.
160 MPH Speedometer Graduated in Miles Per Hour
Console (D55) Available
High-Low Level Body Ventilation
Exterior Features
Endura Front Bumper
Grille Styling with Black Accent
Chrome Rear Bumper
Fiberglass Hood with Simulated Dual Snorkel Intakes
Firebird Nameplate on front fender
FORMULA 350, FORMULA 400 or FORMULA 455 Emblems on Fenders matching the engine size ordered,
Right- and Left-hand Body-colored Outside Mirrors - Left-hand Remote Controlled
Firebird Emblem on Deck Lid (Except with Spoiler)
Rear Air Spoiler (D80) Optional. Includes Spoiler Bird Decal in Black or White
Exposed Windshield Wipers
C24 Concealed Wipers Available
Narrow Rocker Panel Moldings
Bright Windshield and Rear Window Moldings
Bright Headlamp Bezels
Chrome Exhaust Tips
Windshield Radio Antenna
Other
Dual Horns
Standard Engine
L30 350 cid (5.7 Litre) V-8 2bbl
Optional Engine
L78 400 cid (6.6 Litre) V-8 4bbl
L75 455 cid (7.5 Litre) V-8, 4bbl
LS2 455 cid (7.5 Litre) V-8, 4bbl Super Duty
Standard Transmission
M12 3 speed Manual Floor Shift (Automatic in California)
Optional Transmission
M20 4 speed Wide Ratio Manual Floor Shift (with 350 V8 or LS2 Super Duty 455 Only)
M21 Close Ratio 4 Speed Manual Transmission with L78 400 V8 or L75 455 V8
M40 3-Speed Turbo Hydra-matic Transmission Not Available with L30 350 V8
Steering
Manual Steering
Variable Ratio Power Steering Available (N41)
Suspension
Independent Front Suspension with upper and lower control arms, coil springs and tubular shocks. Rear Hotchkiss solid Axle with multi-leaf springs
Heavy Duty Front Coil Springs
Heavy Duty Firm Control Tubular Shocks
1.125 inch Front Stabilizer bar
0.620 inch Rear Stabilizer Bar
Brakes
Manual Front Disc Brakes-Rear Drum Brakes
Power Front Disc, Rear Drum Available (JL2)
Differential
Solid Rear Axle
G80 Safe T Track Differential Available
Axle Ratios
3.08:1 (350 with Manual Transmission)
2.73:1 (Automatic Transmission)
3.42:1 (with 400 and Manual Transmission)
3.08:1 (with 400 and 455 and Automatic Transmission)
3.08:1 (with 400 and 455 and Automatic Transmission)
3.42:1 (400 and automatics Transmission and all Super Duty 455)
Optional Axle Ratio
G92 Performance Axle
3.42:1 (with Manual Transmissions)
3:08:1 (with automatic Transmission)
3.42:1 (with 400 or 455 and Automatic Transmission or Super Duty 455 with any transmission)
Wheels/Hubcaps
Standard Hubcaps
14" X 7"
Available Wheels/Hubcaps
Deluxe Wheel Covers (P01)
Custom Finned Wheel Covers (P02)
Rally II Wheels including Trim Rings (N98) 14" x 7" (15" x 7" When the Y99 Formula Handling Package was ordered)
Honeycomb Wheels (P05) 14" x 7" (15" x 7" When the Y99 Formula Handling Package was ordered)
Wheel Trim Rings (P06) with Standard Hubcap only
Standard Tires
F70-14 Blackwall Fiberglass Tires (PY6)
Available Tires
F70-14 Raised White Letter Tires (PL4)

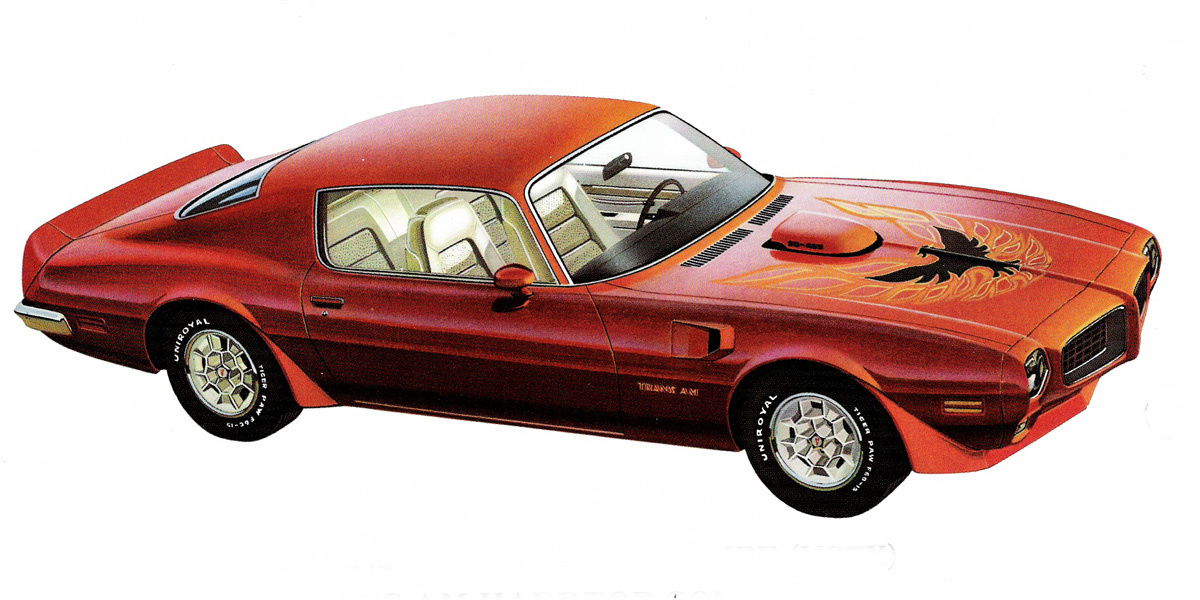

Trans Am V87

Interior Features
Standard Interior
All Morrokide Vinyl Bucket Seats
Standard door panels with map pockets
Custom Interior (Y90) available
Other Interior Features
Formula Steering Wheel Black (NK3)
Nylon Blend Loop-pile Carpeting
Solid 1 piece Headliner
Seat Belts with Push-button Buckles for all passenger positions. Shoulder Belts with Push Button buckles for driver and front passenger
Black Seat Belts (color keyed available AK1)
Floor Mounted Dimmer Switch
Engine-turned Instrument Panel Plate with Black Trim
Rally Guages, Clock & Instrument Panel Tachometer (WW8) and 160 MPH Speedometer Graduated in Miles Per Hour
Console (D55) Available
High-Low Level Body Ventilation
Exterior Features
Endura Front Bumper
Grille Styling with Black Accent
New Special Bird Decal on Front Bumper (Except with WW7 Hood decal)
Front Center Air Dam and Rear Wheel Opening Air Spoiler
Chrome Rear Bumper
Shaker Hood and Air Cleaner (No longer functional)
Trans Am Decal on Front Fender
Functional Front Fender Air Extractors
Right- and Left-hand Body-colored Outside Mirrors - Left-hand Remote Controlled
Rear Spoiler with TRANS AM decal
Concealed Windshield Wipers (C24)
No Rocker Panel Moldings
Bright Windshield and Rear Window Moldings
Bright Headlamp Bezels
Chrome Exhaust Tips
Windshield Radio Antenna
Other
Dual Horns
Standard Engine
L75 455 cid (7.5 Litre) V-8, 4bbl
Optional Engine
LS2 455 cid (7.5 Litre) V-8, 4bbl Super Duty
Standard Transmission
M21 4 speed Close Ratio Manual Floor Shift (M20 Wide Ration with LS2 Super Duty 455)
Optional Transmission
M40 3-Speed Turbo Hydra-matic Transmission
Steering
Fast Ratio, High Effort Power Steering
Suspension
Independent Front Suspension with upper and lower control arms, coil springs and tubular shocks. Rear Hotchkiss solid Axle with multi-leaf springs
Heavy Duty Front Coil Springs
Heavy Duty Firm Control Tubular Shocks
1.250 inch Front Stabilizer Bar
0.875 inch (7/8) Rear Stabilizer Bar
Brakes
Power Front Disc Brakes-Rear Drum Brakes (JL2)
Differential
Safe-T Track Limited Slip
Axle Ratios
3.08:1 (455 And Manual Transmission)
3.42:1 (455 with Manual Transmission and all Super Duty 455)
Optional Axle Ratio
G92 Performance Axle
3.42:1 (455 And Automatic Transmission)
Wheels/Hubcaps
Rally II Wheels with Trim Rings (N98)
15" X 7"
Available Wheels/Hubcaps
Honeycomb Wheels (P05) 15" x 7"
Standard Tires
F60-15 White Letter Tires
Available Tires
GR70-15 Whitewall Steel Belted Radial (P85)
