Spotter's Guide Hood Bird Guide Color Guide

Colors

All Models Except as Noted
11 - Cameo White
W50 Color
13 - Sterling Silver
W50 Color
19 - Starlight Black
W50 Color
21 - Lombard Blue NEW
Skybird Only
22 - Glacier Blue
W50 Color, Not available on Trans Am
29 - Nautilus Blue
Not Available on Trans Am
36 - Firethorn Red
Not available on Trans Am
38 - Aquamarine
Not available on Trans Am
44 - Bahia Green
Not available on Trans Am
51 - Goldenrod Yellow
W50 Color
61 - Mohave Tan
Not available on Trans Am
63 - Buckskin Metallic
Not available on Trans Am
69 - Brentwood Brown
78 - Mandarin Orange
Not available on Trans Am
75 - Buccaneer Red
W50 Color
W50 Color: This color was available with the W50 Formula Appearance Option
Accent Colors
58 - Bright Blue
Lower Accent Color for Skybird
55 - Gold Metallic
Lower accent color with W50 with Starlight Black Formula Appearance Package

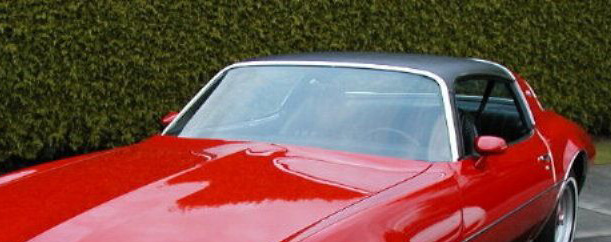

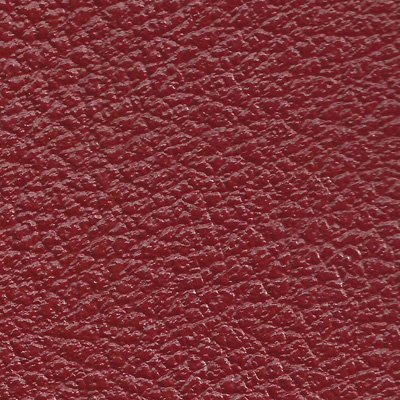

Option CB7: Cordova Vinyl Top

Production Total: 6,330
The Canopy top was unchanged from 1976. This option, never a hot seeler, was seeing sales decline from 8,158 in 1976 to 6,330. Vinyl top sales would continue to decline until the option was terminated after 1979.
  • Not Available with Skybird (W60) or Redbird (W66) Appearance Package (W66).
  • Not available on Trans Am
  • Not available with T-Tops
11-T White

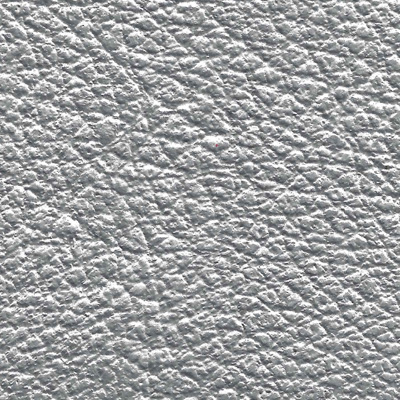

13-T Silver
19-T Black
22-T Blue
36-T Firethorn

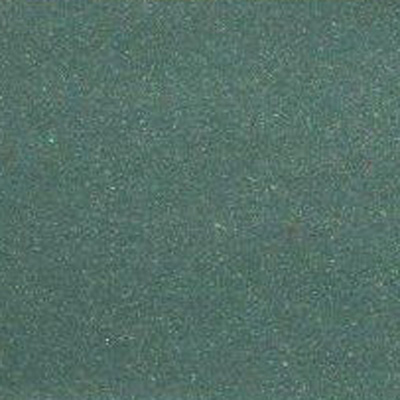

44-T Green

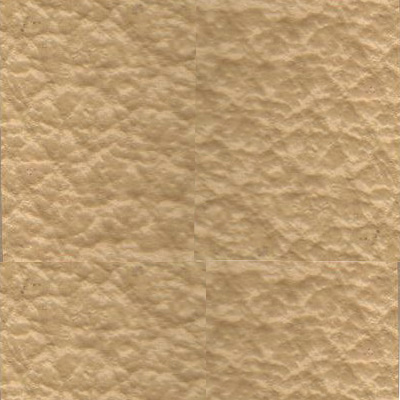

61-T Buckskin

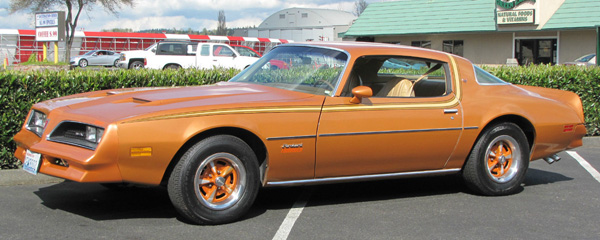

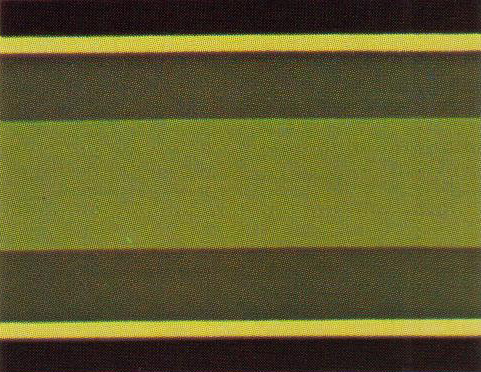

Option D98: Vinyl Accent Stripes

Production Total: 20,372
  • Not Available with Skybird (W60).
  • Not available on Trans Am
  • Stripe and Exterior color selection were the customer's choice
Graphic
Pick one
Black/Lt Blue/Dk Blue/Med Blue
Black/Lt Brown/Dk Brown/Med Brown
Black/White/Charcoal/ Argent
Black/Dk Red/Lt Red/Med Red
Black/Lt Green/Dk Green/Med Green
Goldenrod Yellow and Black/Dk Red/Lt Red/Med Red Stripe
1977 Firebird Colors
Cameo White
Sterling Silver
Starlight Black
Glacier Blue
Nautilus Blue
Firethorn Red
Aquamarine
Bahia Green
Goldenrod yellow
Mohave Tan
Buckskin Metallic
Brentwood Brown
Mandarin Orange
Buccaneer Red
Optional: Select a vinyl top
White
Silver
Black
Blue
Firethorn
Green
Buckskin
None

Option W60: Skybird Appearance Package

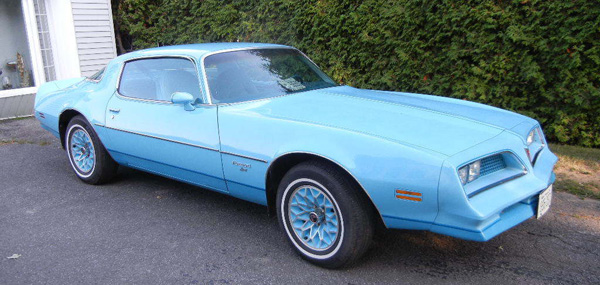

1977 Esprit Skybird
Production Total: 5,692
Based on the 1976 concept Blue Bird the Skybird was the first attemt as a special edition other than Trans Am. Adorned in Skybird only Lombard Blue paint with Dark Blue lower accent skybird featured many unique features. The sail panel, trunklid or spoiler, if equipped was adorned by a blue bird in a pin-stripe style design. Thin blue striping separated the upper and lower two tone colrs and also repeated on the hood. The front grilles were acccented with blue highlights and blue snowflake wheels were distinct features of the Skybird.

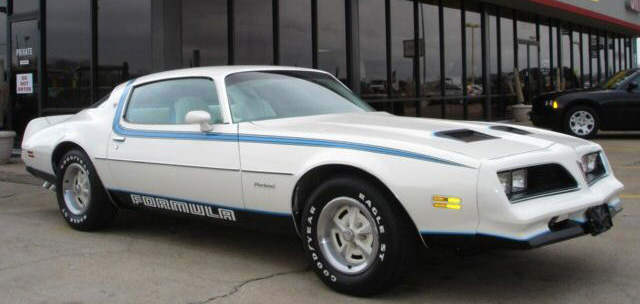

Formula with W50 Appearance Package

1977 Firebird Formula W50 Option

Production Total: 10,674
The Formula W50 Appearance Package continued for 1977 and added two additional colors to the pallette for a total of six. Starlight Black was added to the list of colors and the W50 Option gave it a gold lower two tone with gold striping. A new FORMULA id decal was introduced, possibly at mid year because the 1976 style is still listed as valid for 1977. The new FORMULA logo featured a dark center accent. The W50 Formula Appearance Package carried over the striping around the lower body, blacked out rear taillamp surround and partial bumper, striping on the lower edge of the spoiler, and the smaller 7.22" Spoiler bird with FORMULA decals on the fenders and the standard rear spoiler. The smaller bird was designed to accomodate the wide stripe on the spoiler. Missing on all models for 1978 was the model identication decal on the top of the fascia on the driver's side.
Optional: Select a vinyl top
White
Silver
Black
Blue
Firethorn
Green
Buckskin
None
Nocturne with Dark Charcoal lower and Blue Accent Stripe<
Formula W50 Colors
Cameo White
Sterling Silver
Starlight Black
Glacier Blue
Goldenrod yellow
Buccaneer Red

Trans Am Graphics

Graphics
Select colors at the bottom to see enlarged graphics
Black and Gold Special Edition
Charcoal/Red
Gold Clear
Gold Black
For each color offerred on Trans Am the bird graphic was automatically picked for uyou, unlike in later years where you could mix and match. Note this years new edition of the larger gold decal used on the Solar Gold Trans AM.

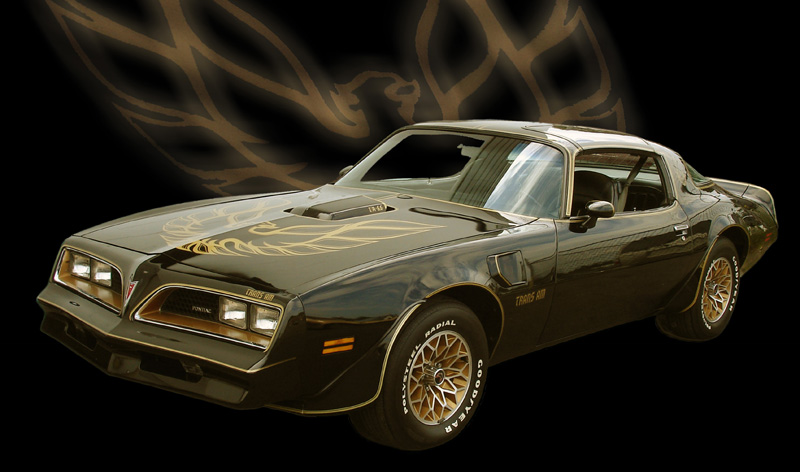

Starlight Black Special Edition with Gold/Gold Matte graphics
Select a car color (Click to see example)
19 - Starlight Black Special Edition
11 - Cameo White
15 - Platinum
19 - Starlight Black
51 - Goldenrod Yellow
69 - Brentwood Brown**
75 - Buccaneer Red

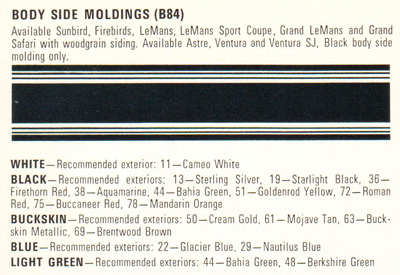

Option B84: Vinyl Body Side Moldings

Available All Models
Production Total: 61,889
Body side moldings were a popular option for those who wanted their Firebirds without door dings. Available in 5 colors the factory body side molding was a stick on molding. Other, higher quality after-market moldings were dealer installed and were usually rivet on types.
Examples shown on this page consist of scanned images or reproduction artwork that can not be faithfully reproduced on a computer screen. Illustrations are for example only. Consult with your vendors offerring reproduction parts for their historical accuracy.
