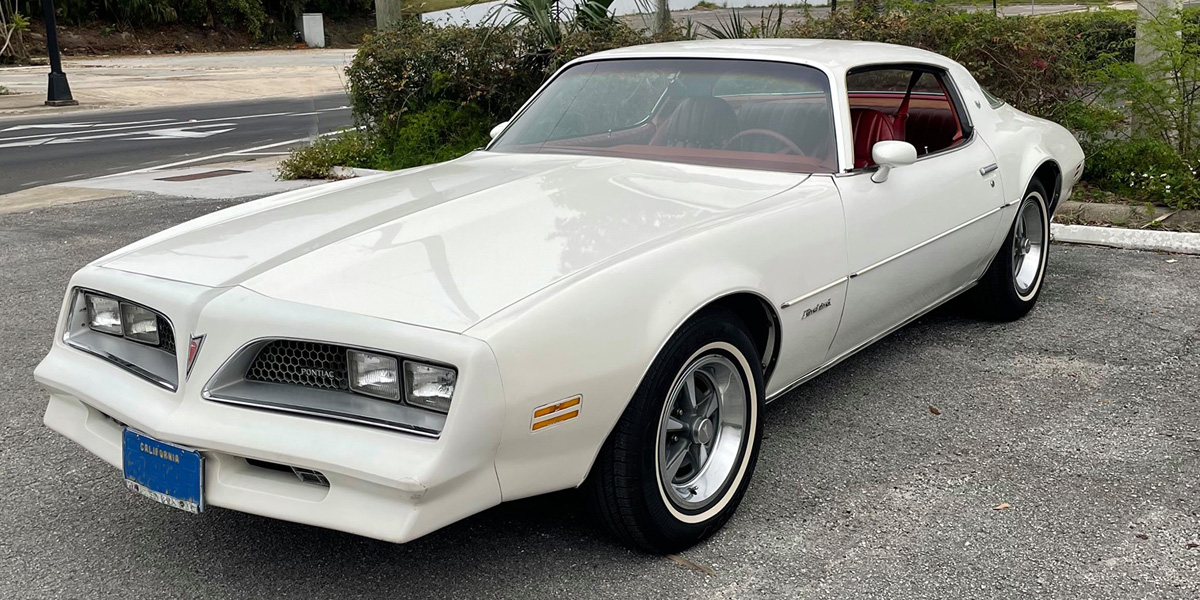

Base Firebird S87

Interior Features
Standard Interior
Oxen Vinyl Bucket Seats
Standard door panels with map pockets
Other Interior Features
New Deluxe Cushion Three Spoke Steering Wheel in Interior Matching Color
Nylon Blend Cut-pile Carpeting
Solid 1 piece Headliner
Seat Belts with Pushbutton buckles for all passenger positions. Two front combination seat and shoulder belts for driver and right front passenger (with reminder light and buzzer and inertia reel).
Black Seat Belts (color keyed available AK1)
Floor Mounted Dimmer Switch
Rosewood Grain Applique on Instrument Panel with black instrument bezels
100 MPH Speedometer Graduated in Kilometers per Hour as well as Mile per Hour
Console (D55) Available
High-Low Level Body Ventilation
Exterior Features
New One Piece Resilient Endura Front Bumper
New Grille Styling with Argent Accent
Cloisonne Bird Emblem on Sail Panel
Endura Rear Bumper in body color
Firebird Nameplate on front fender
Chrome Left Hand Mirror
Firebird Emblem on Deck Lid (Except with Spoiler)
Rear Air Spoiler (D80) Optional. Includes Spoiler Bird Decal
Concealed Windshield Wipers
Narrow Rocker Panel Moldings
Bright Windshield and Rear Window Moldings
Other
Dual Horns
Standard Engine
LD7 231 cid (3.8 Litre) V-6, 2bbl
Optional Engine
L27 301 cid V8 2bbl until June 2, 1977
LG3 305 cid (5.0 Litre) V-8, 2bbl from June 2, 1977
L76 350 cid (5.7 Litre) V8 4bbl, (Pontiac)
L34 350 cid (5.7 Litre) V-8 4bbl (California and High Altitude) (Oldsmobile)
Standard Transmission
M15 3 speed Manual
Steering
Variable Ratio - Power Steering
Suspension
Radial Tuned Suspension with Independent Front Suspension with upper and lower control arms, coil springs and tubular shocks. Rear Hotchkiss solid Axle with multi-leaf springs
1.125 inch Front Stabilizer bar
Brakes
Manual Front Disc Brakes-Rear Drum Brakes
Power Front Disc, Rear Drum Available (JL2)
Power Brakes Required with any V8
Differential
Solid Rear Axle
G80 Safe T Track Differential Available
Axle Ratios
3.08:1 with LD7 V6 and M15 3 Speed Manual
2.56:1 with LD7 V6 and M40 Automatic
3.23: 1 with V8 and M20 4 speed.
2.41:1 with V8 and M40 Automatic
Optional Axle Ratio
3.23:1 with LD7 231 V6 and M40 Automatic
Wheels/Hubcaps
Hubcaps with Pontiac Crest
15" X 7"
Available Wheels/Hubcaps
Deluxe Wheel Covers (P01)
New Wire Wheel Covers (N95)
Rally II Wheels with Trim Rings (N98)
Body Color Rally II Wheels with Trim Rings (N67)
New Cast Aluminum Snowflake Wheels (YJ8) Available in Gray or Gold
Standard Tires
FR78-15 Blackwall Steel Belted Radial
Available Tires
FR78x15 Whitewall Steel Belted Radial Tires (QBW)
FR78x15 Raised White Letter Steel Belted Radial Tires (QBP)
FR78 X 15 Blackwall Fiberglass Tires (QKM) - Credit Option
FR78 X 15 Whitewall Fiberglass Tires (QKN) - Credit Option

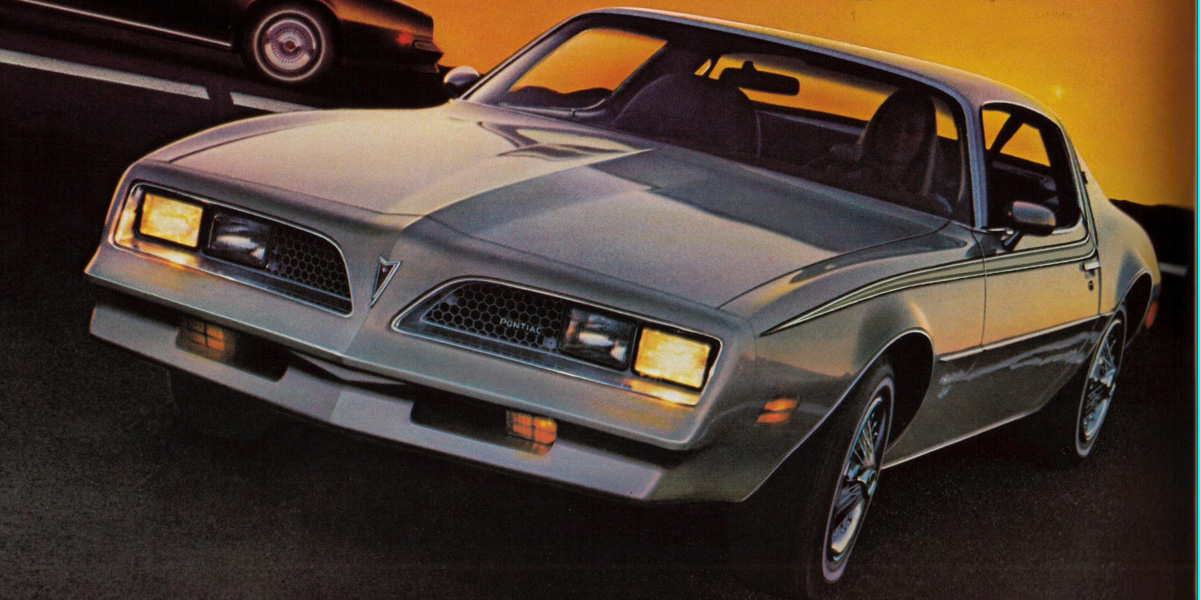

Firebird Esprit T87

Interior Features
Custom Interior (Y90)
Custom Morrokide and Perforated Morrokide Vinyl Bucket Seats
Upgraded door panels with pull strap and map pockets below.
Instrument Panel Assist Strap
Rear Quarter Ashtrays
Bright Pedal Trim (JL1)
Luggage Compartment Mat
Includes Exterior Door handle insert in body color
Other Interior Features
Luxury Cushion Three Spoke Steering Wheel (N30) in Interior Matching Color
Nylon Blend Cut-pile Carpeting
Solid 1 piece Headliner
Extra Body and Underhood Insulation
Seat Belts with Pushbutton buckles for all passenger positions. Two front combination seat and shoulder belts for driver and right front passenger (with reminder light and buzzer and inertia reel).
Black Seat Belts (color keyed available AK1)
Floor Mounted Dimmer Switch
Rosewood Grain Applique on Instrument Panel with black instrument bezels
100 MPH Speedometer Graduated in Kilometers per Hour as well as Mile per Hour
Console (D55) Available
High-Low Level Body Ventilation
Exterior Features
New One Piece Resilient Endura Front Bumper
New Grille Styling with Argent Accent
Cloisonne Bird Emblem on Sail Panel
Endura Rear Bumper in body color
Firebird Nameplate on front fender
Esprit Nameplate on Front Fender
Right- and Left-hand Body-colored Outside Mirrors - Left-hand Remote Controlled
Body Color Inserts in Outside Door Handles
Firebird Emblem on Deck Lid (Except with Spoiler)
Rear Air Spoiler (D80) Optional. Includes Spoiler Bird Decal
Concealed Windshield Wipers
Wide Rocker Panel Moldings
Chrome Roof Drip with Scalp Moldings (B80)
Hood Rear Edge and Belt Reveal Moldings
Front and Rear Wheel Opening Moldings
Bright Windshield and Rear Window Moldings
Other
Dual Horns
Standard Engine
LD7 231 cid (3.8 Litre) V-6, 2bbl
Optional Engine
L27 301 cid V8 2bbl until June 2, 1977
LG3 305 cid (5.0 Litre) V-8, 2bbl from June 2, 1977
L76 350 cid (5.7 Litre) V8 4bbl, (Pontiac)
L34 350 cid (5.7 Litre) V-8 4bbl (California and High Altitude)
Standard Transmission
M15 3 speed Manual
Steering
Variable Ratio - Power Steering
Suspension
Radial Tuned Suspension with Independent Front Suspension with upper and lower control arms, coil springs and tubular shocks. Rear Hotchkiss solid Axle with multi-leaf springs
1.125 inch Front Stabilizer bar
Brakes
Manual Front Disc Brakes-Rear Drum Brakes
Power Front Disc, Rear Drum Available (JL2)
Power Brakes Required with any V8
Differential
Solid Rear Axle
G80 Safe T Track Differential Available
Axle Ratios
3.08:1 with LD7 V6 and M15 3 Speed Manual
2.56:1 with LD7 V6 and M40 Automatic
3.23: 1 with V8 and M20 4 speed.
2.41:1 with V8 and M40 Automatic
Optional Axle Ratio
3.23:1 with LD7 231 V6 and M40 Automatic
Wheels/Hubcaps
Deluxe Wheel Covers (P01)
15" X 7"
Available Wheels/Hubcaps
New Wire Wheel Covers (N95)
Rally II Wheels with Trim Rings (N98)
Body Color Rally II Wheels with Trim Rings (N67)
New Cast Aluminum Snowflake Wheels (YJ8)
Standard Tires
FR78-15 Blackwall Steel Belted Radial
Available Tires
FR78x15 Whitewall Steel Belted Radial Tires (QBW)
FR78x15 Raised White Letter Steel Belted Radial Tires (QBP)
FR78 X 15 Blackwall Fiberglass Tires (QKM) - Credit Option
FR78 X 15 Whitewall Fiberglass Tires (QKN) - Credit Option

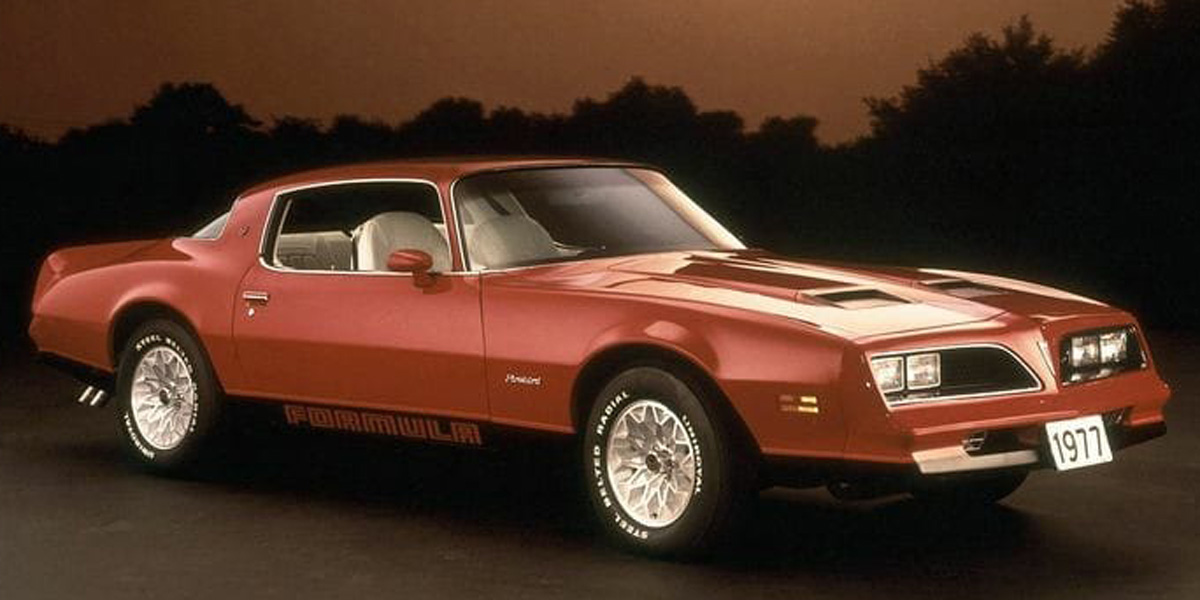

Formula U87

Interior Features
Standard Interior
Oxen Vinyl Bucket Seats
Standard door panels with map pockets
Custom Interior (Y90) available
Other Interior Features
Luxury Cushion Three Spoke Steering Wheel (N30) in Interior Matching Color
Nylon Blend Cut-pile Carpeting
Solid 1 piece Headliner
Seat Belts with Pushbutton buckles for all passenger positions. Two front combination seat and shoulder belts for driver and right front passenger (with reminder light and buzzer and inertia reel).
Black Seat Belts (color keyed available AK1)
Floor Mounted Dimmer Switch
Rosewood Grain Applique on Instrument Panel with black instrument bezels
100 MPH Speedometer Graduated in Kilometers per Hour as well as Mile per Hour
Console with Floor Mounted Shifter
High-Low Level Body Ventilation
Exterior Features
New One Piece Resilient Endura Front Bumper
New Grille Styling with Black Accent
FORMULA Decal on Front Bumper.
Cloisonne Bird Emblem on Sail Panel
Endura Rear Bumper in body color
FORMULA Decal on Rear Spoiler
New Simulated Dual Air Scoop Design
Firebird Nameplate on front fender
FORMULA Decal on Front Fender
W50 FORMULA graphics Optional
Right- and Left-hand Body-colored Outside Mirrors - Left-hand Remote Controlled
Rear Air Spoiler (D80). Includes Spoiler Bird and FORMULA Decals
Concealed Windshield Wipers
Narrow Rocker Panel Moldings (except with W50 Formula Appearance Package)
Bright Windshield and Rear Window Moldings
Chrome Side-splitter Tailpipe Extensions
Other
Dual Horns
Standard Engine
L27 301 cid V8 2bbl until June 2, 1977
LG3 305 cid (5.0 Litre) V-8, 2bbl from June 2, 1977
L34 350 cid (5.7 Litre) V-8 4bbl (California and High Altitude)
Optional Engine
L76 350 cid (5.7 Litre) (Pontiac) V8
L78 400 cid (6.6 Litre) V-8 4bbl
L80 403 cid (6.6 Litre) V-8, 4bbl (California and High Altitude)
W72 400 cid (6.6 Litre) V8, 4bbl
Standard Transmission
M20 4 speed Close Ratio Manual (M40 automatic in California and High Altitude)
Optional Transmission
M40 3 Speed Turbo Hydramatic
Steering
Variable Ratio - Power Steering
Suspension
Radial Tuned Suspension with Independent Front Suspension with upper and lower control arms, coil springs and tubular shocks. Rear Hotchkiss solid Axle with multi-leaf springs
Heavy Duty Front Coil Springs
Heavy Duty Firm Control Tubular Shocks
1.125 inch Front Stabilizer bar
0.560 inch Rear Stabilizer Bar
Optional Suspension
Rally RTS Handling Package (QBX) Available
Brakes
Power Front Disc, Rear Drum (JL2)
Differential
Solid Rear Axle
G80 Safe T Track Differential Available
Axle Ratios
3.23:1 with M20 4 speed.
2.41:1 with M40 Automatic
Optional Axle Ratio
3.23:1 with any 400 V8 and M40 Automatic
Wheels/Hubcaps
Rally II Wheels with Trim Rings (N98)
15" X 7"
Available Wheels/Hubcaps
Deluxe Wheel Covers (P01)
New Wire Wheel Covers (N95)
Rally II Wheels with Trim Rings (N98)
Body Color Rally II Wheels with Trim Rings (N67)
New Cast Aluminum Snowflake Wheels (YJ8) Available in Gray or Gold
Standard Tires
FR78-15 Blackwall Steel Belted Radial
Available Tires
FR78x15 Whitewall Steel Belted Radial Tires (OBW)
FR78x15 Raised White Letter Steel Belted Radial Tires (OBP)

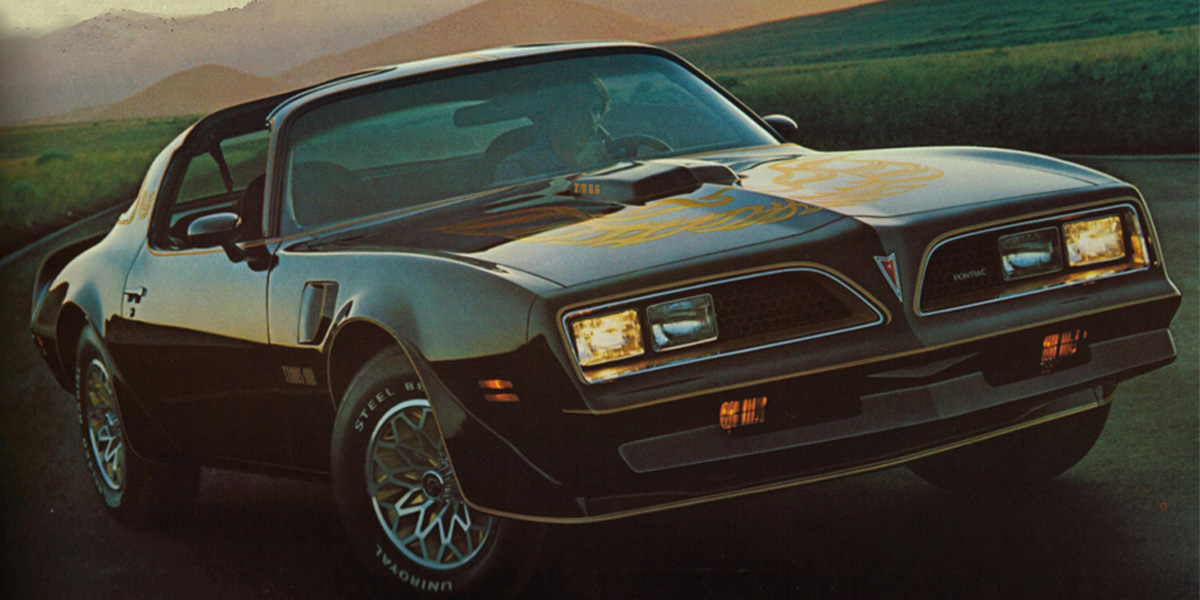

Trans Am W87

Interior Features
Standard Interior
Oxen Vinyl Bucket Seats
Standard door panels with map pockets
Custom Interior (Y90) available
Other Interior Features
Formula Steering Wheel Black (NK3)
Nylon Blend Cut-pile Carpeting
Solid 1 piece Headliner
Seat Belts with Pushbutton buckles for all passenger positions. Two front combination seat and shoulder belts for driver and right front passenger (with reminder light and buzzer and inertia reel).
Black Seat Belts (color keyed available AK1)
Floor Mounted Dimmer Switch
Engine-turned Instrument Panel Plate with Black Trim
Rally Guages, Clock & Instrument Panel Tachometer (WW8) and 100 MPH Speedometer Graduated in Miles and Kilometers Per Hour
Console with Floor Mounted Shifter
High-Low Level Body Ventilation
Exterior Features
New One Piece Resilient Endura Front Bumper
New Grille Styling with Black Accent
Trans Am Decal on Front Bumper.
Front Center Air Dam and Rear Wheel Opening Air Spoiler
Cloisonne Bird Emblem on Sail Panel
Endura Rear Bumper in body color
Shaker Hood and Air Cleaner
Trans Am Decal on Front Fender
Functional Front Fender Air Extractors
Right- and Left-hand Body-colored Outside Mirrors - Left-hand Remote Controlled
Rear Spoiler with TRANS AM decal
Concealed Windshield Wipers
No Rocker Panel Moldings
Bright Windshield and Rear Window Moldings
Chrome Side-splitter Tailpipe Extensions
Other
Dual Horns
Standard Engine
L78 400 cid (6.6 Litre) V-8 4bbl
L80 403 cid (6.6 Litre) V-8, 4bbl (California and High Altitude)
Optional Engine
W72 400 cid (6.6 Litre) V8, 4bbl
Standard Transmission
M40 3 Speed Turbo Hydramatic
Optional Transmission
M20 4 speed Close Ratio Manual (available with W72 400 cid V8))
Steering
Variable Ratio - Power Steering
Suspension
Radial Tuned Suspension with Independent Front Suspension with upper and lower control arms, coil springs and tubular shocks. Rear Hotchkiss solid Axle with multi-leaf springs
Heavy Duty Front Coil Springs
Heavy Duty Firm Control Tubular Shocks
1.250 inch Front Stabilizer Bar
0.625 inch Rear Stabilizer Bar
Optional Suspension
Rally RTS Handling Package (QCY) Available
Brakes
Power Front Disc, Rear Drum (JL2)
Differential
Safe-T Track Limited Slip
Axle Ratios
3.23:1 with M20 4 speed.
2.41:1 with M40 Automatic
Optional Axle Ratio
3.23:1 with M40 Automatic
Wheels/Hubcaps
Rally II Wheels with Trim Rings (N98)
15" X 7"
Available Wheels/Hubcaps
Body Color Rally II Wheels with Trim Rings (N67)
New Cast Aluminum Snowflake Wheels (YJ8)
Standard Tires
FR78x15 Raised White Letter Steel Belted Radial Tires (OBP)
