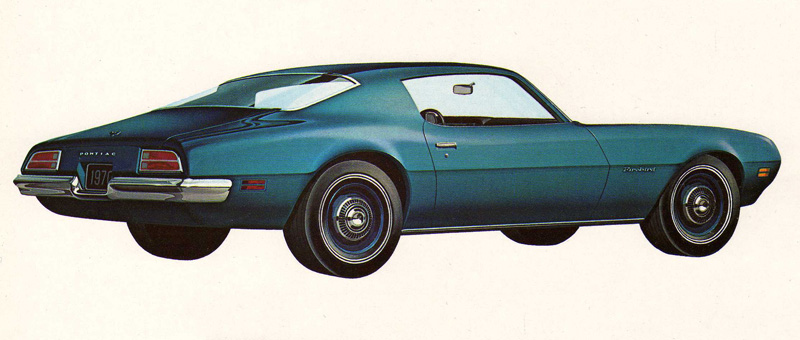

Base Firebird 2387

Interior Features
Standard Interior
Vinyl Low-back Bucket Seats with separate headrests and Morrokide Vinyl.
Standard door panels with map pockets
Other Interior Features
Two spoke, shallow dish steering wheel. Black
Nylon Blend Loop-pile Carpeting
Bow type headliner. Perforated
Seat Belts with Pushbutton Buckles for all Passenger Positions. Separate Shoulder Belts with Push button buckles.
Black Seat Belts (color keyed available AK1 and AK2)
Floor Mounted Dimmer Switch
Wood Grain Vinyl Instrument Panel Face
160 MPH Speedometer Graduated in Miles Per Hour
Console (D55) Available
Upper Level Ventilation
Exterior Features
Endura Front Bumper
Bright Grille Moldings with PONTIAC Emblem.
Firebird Nameplate on front fender

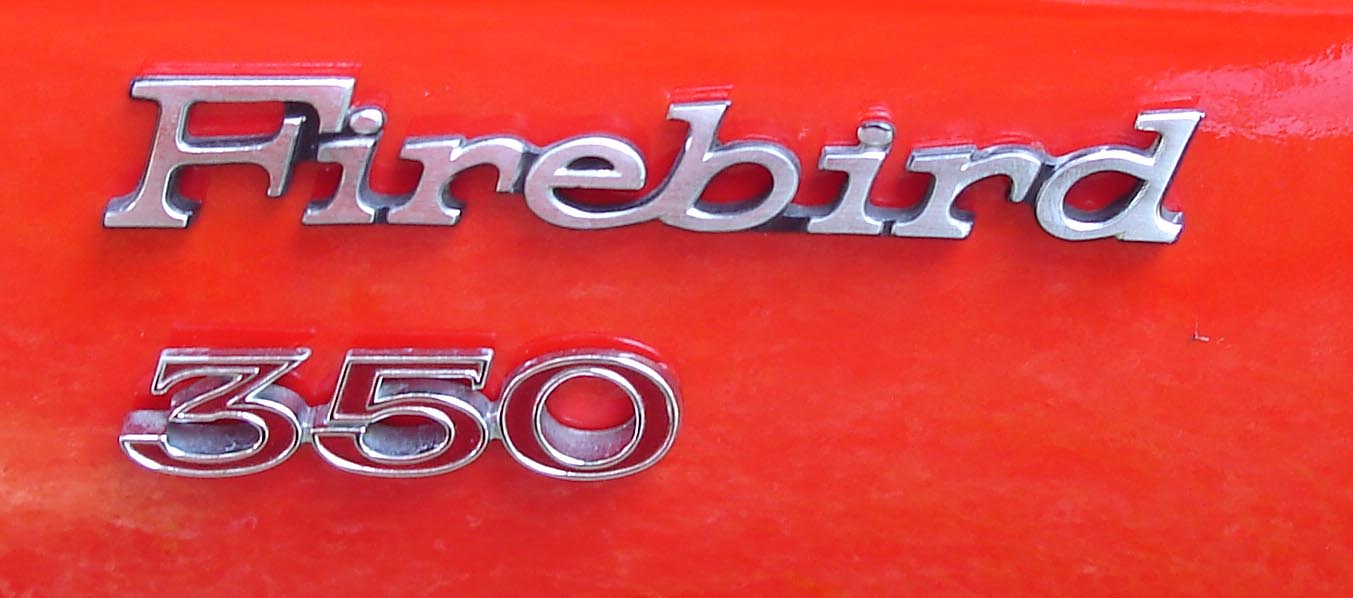

350 emblem on Front Fender when equipped with L30 350 cid engine option
Chrome Left Hand Mirror
D35 Dual Body-Color Sport-Type Outside Rear View Mirrors Available
Exposed Windshield Wipers
Recessed Wipers Available (C24)
Narrow Rocker Panel Moldings
Bright Windshield and Rear Window Moldings
Bright Headlamp Bezels
Windshield Radio Antenna
Other
Single Horn
Dual Horns Available (U05)
Standard Engine
L22 250 cid (4.1 Litre) Overhead valve. 6 cyl. 1-BBL, 155hp Engine. Regular Fuel (L22)
Optional Engine
L30 350 cid (5.7 Litre) V-8, 2-BBL, 255hp, Regular Fuel (L30)
Standard Transmission
3 Speed Manual, Column Shift (353)
Optional Transmission
M13 3-speed Manual Heavy Duty with Floor Mounted Hurst Shifter
M20 4-speed Manual w 350 V-8 (L30)
M35 2-speed Automatic
M38 3-speed Turbo Hydramatic
Steering
Manual Steering
Variable Ratio Power Steering Available (N41)
Suspension
Independent Front Suspension with upper and lower control arms, coil springs and tubular shocks. Rear Hotchkiss solid Axle with multi-leaf springs
0.938 inch Front Stabilizer bar
Brakes
Manual Front Disc Brakes-Rear Drum Brakes
Wonder Touch Power Brakes available (J50)
Differential
Solid Rear Axle
G80 Safe T Track Differential Available
Axle Ratios
3.08:1
3.36:1 with L30 350 V8
Optional Axle Ratio
Wheels/Hubcaps
Standard Hubcap
14" X 6"
14" X 7" with V-8
Available Wheels/Hubcaps
Wire Wheel Disks (N95)
Rally II Wheels including Trim Rings (N98) 14" x 7"
Wheel Trim Rings (P06) with Standard Hubcap only
Standard Tires
E78-14 Blackwall Tires (THP)
Available Tires
F70 X 14 Blackwall Tires (TMF/PY6)
F78 X 14 Whitewall Tires (TGR/PX6)
E78 X 14 Whitewall Tires (THR/PL3)
F70 X 14 Raised White Letter Tires (TML/PL4)

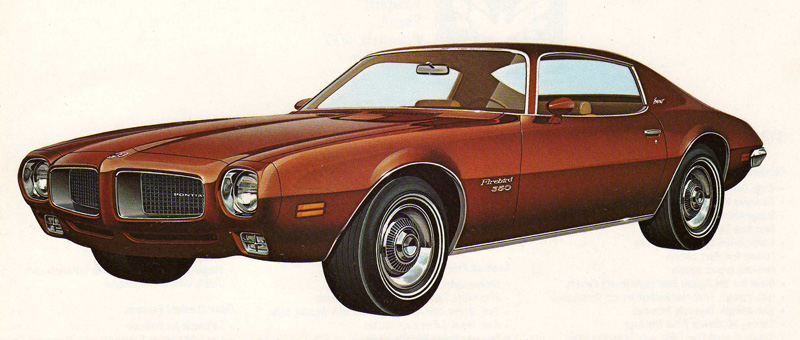

Firebird Esprit 2487

Interior Features
Custom Interior (W54)
Custom Trim Low-back Bucket Seats with Woven Knit, Breathing Vinyl or Kinross Pattern Cloth and Morrokide. Separate head rests.
Upgraded door panels with pull strap and map pockets below.
Assist strap on passenger dash
Trunk Mat (B42)
Includes Exterior Door handle insert in body color
Other Interior Features
Deluxe Three Spoke Steering Wheel (N30) in Interior Matching Color
Nylon Blend Loop-pile Carpeting
Bow type headliner. Perforated
Seat Belts with Pushbutton Buckles for all Passenger Positions. Separate Shoulder Belts with Push button buckles.
Black Seat Belts (color keyed available AK1 and AK2)
Floor Mounted Dimmer Switch
Wood Grain Vinyl Instrument Panel Face
160 MPH Speedometer Graduated in Miles Per Hour
Console (D55) Available
Upper Level Ventilation
Exterior Features
Endura Front Bumper
Bright Grille Moldings with PONTIAC Emblem.
Firebird Emblem on Front Bumper
Esprit Nameplate on Roof Sail Panel
Firebird Nameplate on front fender
350 emblem on Front Fender when equipped with L30 350 cid engine option, or 400 with the L65 engine.
Right- and Left-hand Body-colored Outside Mirrors - Left-hand Remote Controlled (D35)
Body Color Inserts in Outside Door Handles (Part of Custom Interior (W53))
New Firebird Emblem on Deck Lid
Recessed Windshield Wipers (C24)
Wide Rocker Panel Moldings
Décor Moldings (Y80)
Chrome Roof Drip with Scalp Moldings (B80)
Hood Rear Edge and Belt Reveal Moldings
Front and Rear Wheel Opening Moldings
Bright Windshield and Rear Window Moldings
Bright Headlamp Bezels
Windshield Radio Antenna
Other
Dual Horns (U05)
Standard Engine
L30 350 cid (5.7 Litre) V-8, 2-BBL, 255hp, Regular Fuel (L30)
Optional Engine
L65 400 cid (6.6 Litre) V-8, 2bbl, 265hp, Regular Fuel
Standard Transmission
3 Speed Manual, Floor Shift (353)
Optional Transmission
M13 3-speed Manual Heavy Duty with Floor Mounted Hurst Shifter
M20 4-speed Manual, Floor Shift
M35 2-speed Automatic with 350 V-8 Only
M38 Turbo Hydramatic with 350 V8 (L30)
M40 Turbo Hydramatic with 400 V8 (L65) (Requires D55 Console)
Steering
Manual Steering
Variable Ratio Power Steering Available (N41)
Suspension
Independent Front Suspension with upper and lower control arms, coil springs and tubular shocks. Rear Hotchkiss solid Axle with multi-leaf springs
0.938 inch Front Stabilizer bar
Brakes
Manual Front Disc Brakes-Rear Drum Brakes
Wonder Touch Power Brakes available (J50)
Differential
Solid Rear Axle
G80 Safe T Track Differential Available
Axle Ratios
3.36:1 (Manual Transmission)
2.73:1 (Automatic Transmission)
3.08:1 with L65 400 cid V8
Optional Axle Ratio
G90 Performance Axle
3.36: 1 with L30 350 and Automatic: 3.36:1
3.31:1 with L65 400 V8 3.31:1
Wheels/Hubcaps
Standard Hubcap with Wheel Trim Rings (P06)
14" X 7"
Available Wheels/Hubcaps
Wire Wheel Disks (N95)
Rally II Wheels including Trim Rings (N98) 14" x 7"
Standard Tires
E78-14 Blackwall Tires (THP)
Available Tires
F70 X 14 Blackwall Tires (TMF/PY6)
F78 X 14 Whitewall Tires (TGR/PX6)
E78 X 14 Whitewall Tires (THR/PL3)
F70 X 14 Raised White Letter Tires (TML/PL4)

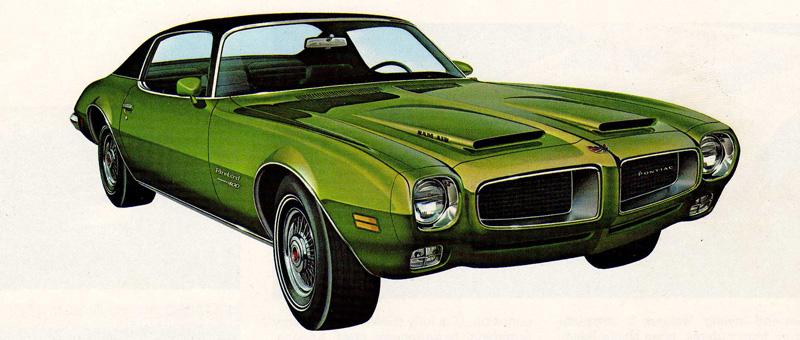

Formula 400 2687

Interior Features
Standard Interior
Vinyl Low-back Bucket Seats with separate headrests and Morrokide Vinyl.
Standard door panels with map pockets
Custom Interior (W54) available
Other Interior Features
Deluxe Three Spoke Steering Wheel (N30) in Interior Matching Color
Nylon Blend Loop-pile Carpeting
Bow type headliner. Perforated
Seat Belts with Pushbutton Buckles for all Passenger Positions. Separate Shoulder Belts with Push button buckles.
Black Seat Belts (color keyed available AK1 and AK2)
Floor Mounted Dimmer Switch
Wood Grain Vinyl Instrument Panel Face
160 MPH Speedometer Graduated in Miles Per Hour
Console (D55) Available
Upper Level Ventilation
Exterior Features
Endura Front Bumper
Black Textured Grill with Bright Grille Moldings with PONTIAC emblem
Firebird Emblem on Front Bumper
Fiberglass Hood with Dual Air Scoops
Firebird Nameplate on front fender

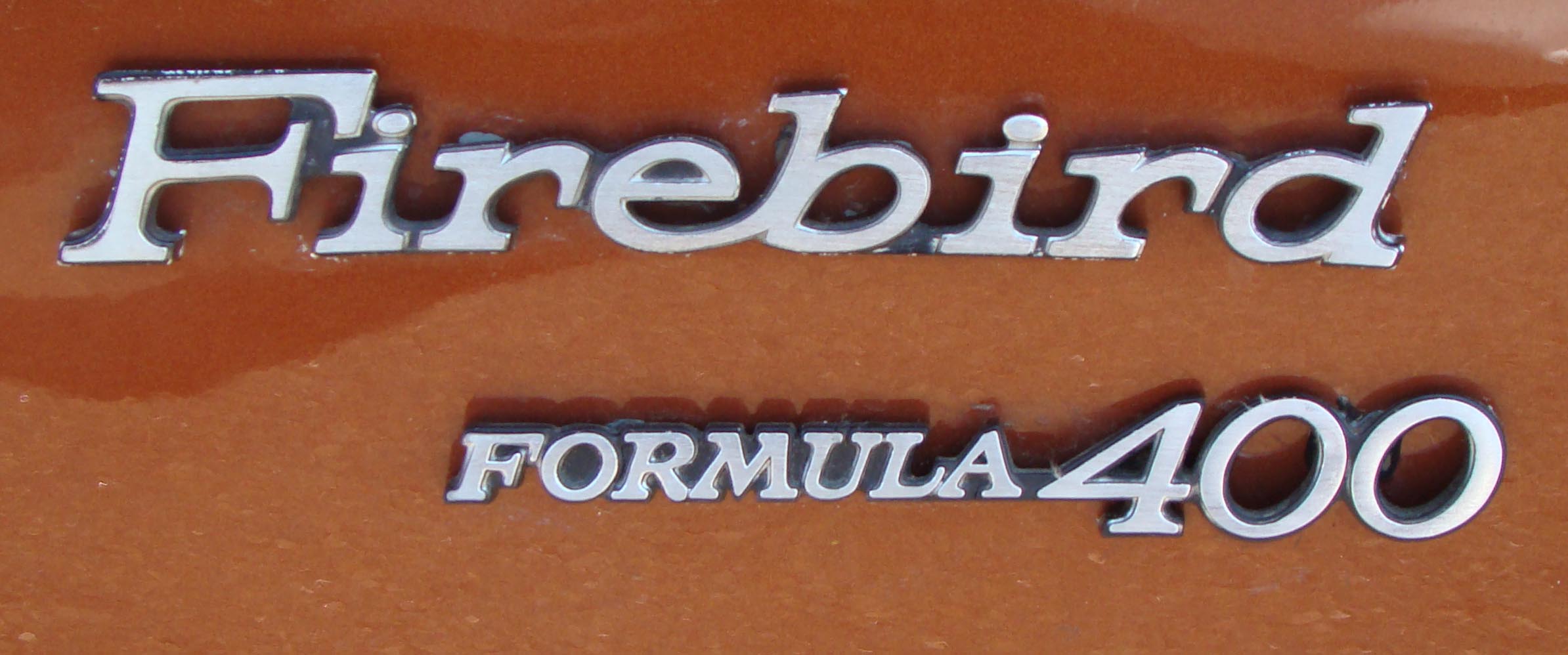

Formula 400 Nameplate on Front Fender Below Firebird Nameplate
Right- and Left-hand Body-colored Outside Mirrors - Left-hand Remote Controlled (D35)
New Firebird Emblem on Deck Lid
Exposed Windshield Wipers
Recessed Wipers Available (C24)
Narrow Rocker Panel Moldings
Bright Windshield and Rear Window Moldings
Bright Headlamp Bezels
Chrome Exhaust Extensions
Windshield Radio Antenna
Other
Dual Horns (U05)
Power-Flex Fan
Standard Engine
L78 400 cid (6.6 Litre) V-8, 4-BBL, 330hp, Premium Fuel
Optional Engine
L74 400 cid (6.6 Litre) Ram Air III V-8, 4-BBL, 345hp, Premium Fuel
Standard Transmission
M13 3-speed Manual Heavy Duty with Floor Mounted Hurst Shifter
Optional Transmission
M20 4-speed Manual (Wide-ratio). Floor mounted
M21 4-speed Manual (Close-ratio). Floor mounted
M40 Turbo Hydra-matic, Floor Mounted (Requires D55 Console)
Steering
Manual Steering
Variable Ratio Power Steering Available (N41)
Suspension
Independent Front Suspension with upper and lower control arms, coil springs and tubular shocks. Rear Hotchkiss solid Axle with multi-leaf springs
Heavy Duty Front Coil Springs
Heavy Duty Firm Control Tubular Shocks
1.20 inch Front Stabilizer Bar
0.620 inch Rear Stabilizer Bar
Brakes
Manual Front Disc Brakes-Rear Drum Brakes
Wonder Touch Power Brakes available (J50)
Differential
Solid Rear Axle
G80 Safe T Track Differential Available
Axle Ratios
3.55:1 without C60 Air Conditioning
3.31 with C60 Air Conditioning
3.07:1 with M40 Turbo Hydra-matic Transmission
Optional Axle Ratio
G90 Performance Axle
3.73:1 requires Safe-T Track Differential (G80) and Heavy Duty Radiator
Wheels/Hubcaps
Standard Hubcap
14" X 7"
Available Wheels/Hubcaps
Wire Wheel Disks (N95)
Rally II Wheels including Trim Rings (N98) 14" x 7"
Wheel Trim Rings (P06) with Standard Hubcap only
Dechromed 15" Rally II Wheels with Ram Air III engine (L74)
Standard Tires
E78-14 Blackwall Tires (THP)
Available Tires
F70 X 14 Raised White Letter Tires (TML/PL4)
F60 X 15 Raised White Letter Tires, includes 15X7 Rally II Wheels (TNL/PM7)

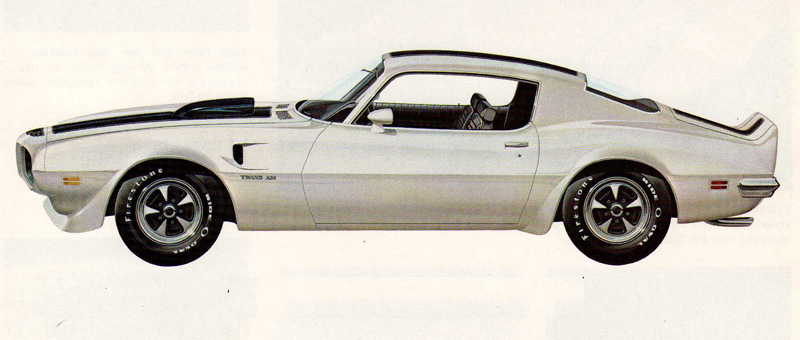

Trans Am 2887

Interior Features
Standard Interior
Vinyl Low-back Bucket Seats with separate headrests and Morrokide Vinyl.
Standard door panels with map pockets
Custom Interior (W54) available
Other Interior Features
Formula Steering Wheel, black (NK3)
Nylon Blend Loop-pile Carpeting
Bow type headliner. Perforated
Seat Belts with Pushbutton Buckles for all Passenger Positions. Separate Shoulder Belts with Push button buckles.
Black Seat Belts (color keyed available AK1 and AK2)
Floor Mounted Dimmer Switch
Engine-turned Instrument Panel Plate with Chrome Trim Bezels
Rally Guages, Clock & Instrument Panel Tachometer (U30) and 160 MPH Speedometer Graduated in Miles Per Hour
Console (D55) Available
Upper Level Ventilation
Exterior Features
Endura Front Bumper
Black Textured Grill with Bright Grille Moldings with PONTIAC emblem
Special Bird Decal on Front Bumper
Front Air Spoiler with Rear Wheel Opening Air Spoiler
Rear Facing Cold Air Intake Through the Hood-Throttle-controlled
Trans Am Decal on Front Fender
Functional Front Fender Air Extractors
Right- and Left-hand Body-colored Outside Mirrors - Left-hand Remote Controlled (D35)
Single Stripes on Hood, Roof, and Rear Deck Lid
Rear Spoiler with TRANS AM decal
Recessed Windshield Wipers
No Rocker Panel Moldings
Bright Windshield and Rear Window Moldings
Bright Headlamp Bezels
Chrome Exhaust Extensions
Windshield Radio Antenna
Other
Dual Horns (U05)
Power-Flex Fan
Standard Engine
L74 400 cid (6.6 Litre) Ram Air III V-8, 4-BBL, 345hp, Premium Fuel (Chrome Rocker Arm Covers and Oil Filler Cap)
Optional Engine
LS1 400 cid (6.6 Litre) Ram Air IV V-8, 4-BBL, 345hp. Premium Fuel (Chrome Rocker Arm Covers and Oil Filler Cap)
Standard Transmission
M20 4-speed Manual (Wide-ratio)
Optional Transmission
M21 4-speed Manual (Close-ratio). Floor mounted
M40 Turbo Hydra-matic, Floor Mounted (Requires D55 Console)
Steering
Variable-ratio Power Steering (N41)
Suspension
Independent Front Suspension with upper and lower control arms, coil springs and tubular shocks. Rear Hotchkiss solid Axle with multi-leaf springs
Heavy Duty Front Coil Springs
Heavy Duty Firm Control Tubular Shocks
1.250 inch Front Stabilizer Bar
0.875 inch (7/8) Rear Stabilizer Bar
Brakes
Power Front Disc Brakes-Rear Drum Brakes (J50)
Differential
Safe-T-Track Differential (G80)
Axle Ratios
3.55:1 without C60 Air Conditioning (Manual Transmission)
3.31 with C60 Air Conditioning
3.55:1 when equipped with M40 Turbo Hydra-matic Transmission
Optional Axle Ratio
G90 Performance Axle
Standard when the LS1 Ram Air IV motor ordered
Wheels/Hubcaps
Dechromed 15" Rally II Wheels
15" X 7"
Available Wheels/Hubcaps
Wheel Trim Rings (P06)*
*Wheel Trim Rings were not initially available with 15" Rally Wheels but TZ has oncovered evidence of one Trans Am with Factory Trim Rings
Standard Tires
F60 X 15 Raised White Letter Tires (TNL/PN7)
